Rocker Arm Oil Control Valve Removal/Installation

Remove the frame brace (see FRAME BRACE REPLACEMENT ).
Disconnect the rocker arm oil control solenoid connector (A) and the rocker arm oil pressure switch connector (B).

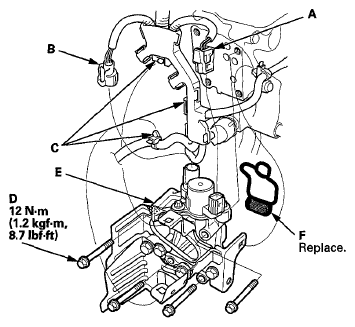

Fig 1: Rocker Arm Oil Control Solenoid Connector, Harness Clamps And Bolts And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the harness clamps (C) and the bolts (D).
Remove the rocker arm oil control valve assembly (E) and the rocker arm oil control valve filter (F).
Remove the engine wire harness brackets (A) from the rocker arm oil control valve (B).

Fig 2: Engine Wire Harness Brackets And Rocker Arm Oil Control Valve And Mounting Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal with a new rocker arm oil control valve filter.
