EVAP System (4-CYL)
>>
Component Location Index
Component Location Index
EVAP System

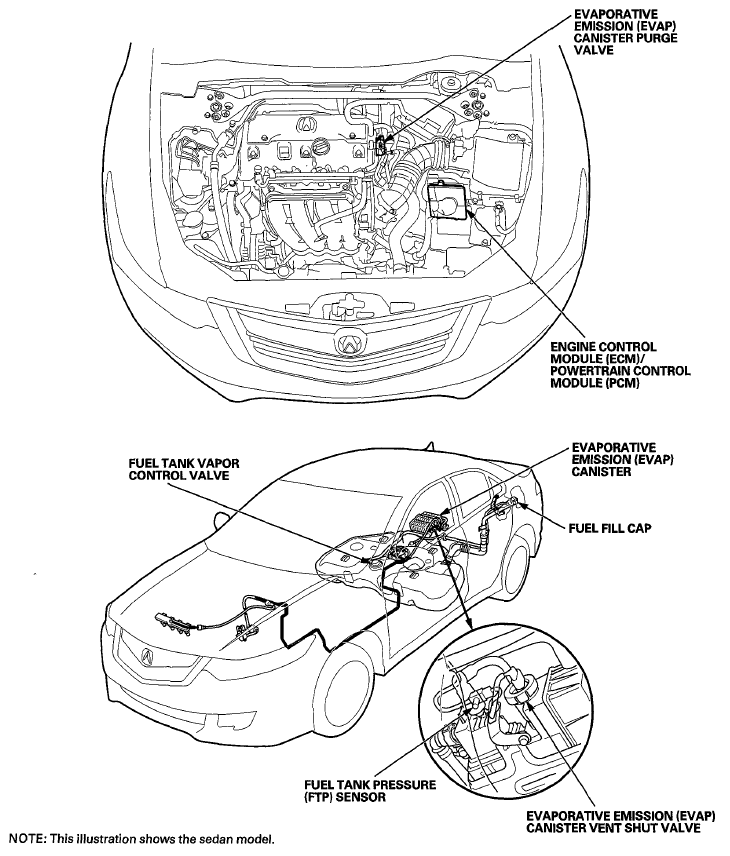

Fig 1: Identifying Evaporative Emission Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
This illustration shows the sedan model.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
