DTC P0615: Starter Cut Relay STRLD Circuit Malfunction: Notes

Fig 1: Starter Cut Relay - Circuit Diagram (M/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

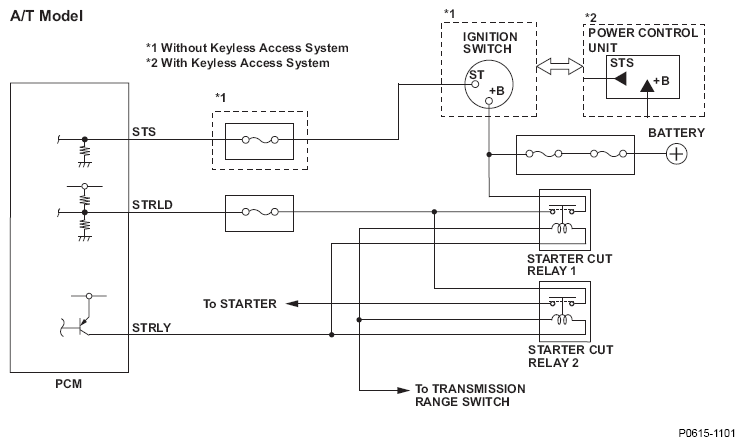

Fig 2: Starter Cut Relay - Circuit Diagram (A/T Model)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
