Drive Belt Auto-Tensioner Replacement

  1. Remove the drive belt .
  2. Remove the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
  3. Remove the auto-tensioner.

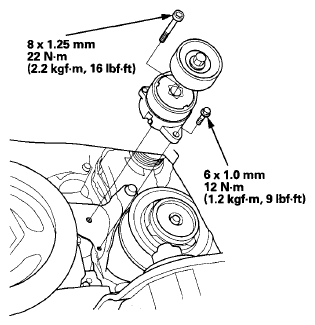

    Fig 1: Drive Belt Auto-Tensioner And Related Replacement Components With Torque Specifications
    G08068599Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the auto-tensioner in the reverse order of removal.
