Without Navigation

  1. Remove the roof console (see HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the screws and bracket (A).

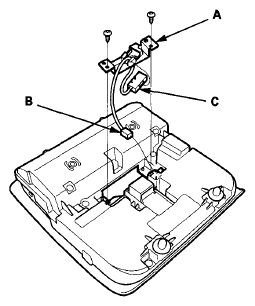

    Fig 1: Identifying Screws And Bracket, Connector And HFL Microphone
    G08071972Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connector (B) and remove the HFL microphone (C).
  4. Install the HFL microphone in the reverse order of removal.
