Acura
>>
2012
>>
TL SH-AWD, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Electrical Compass
>>
Circuit Diagram
Circuit Diagram

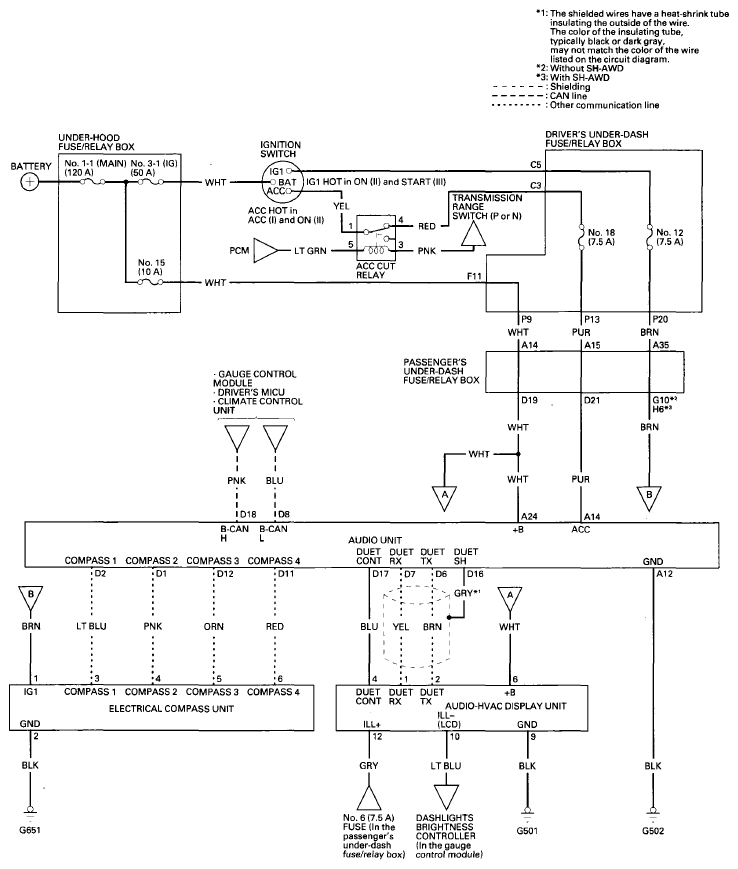

Fig 1: Electrical Compass Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
