A/C Line Replacement

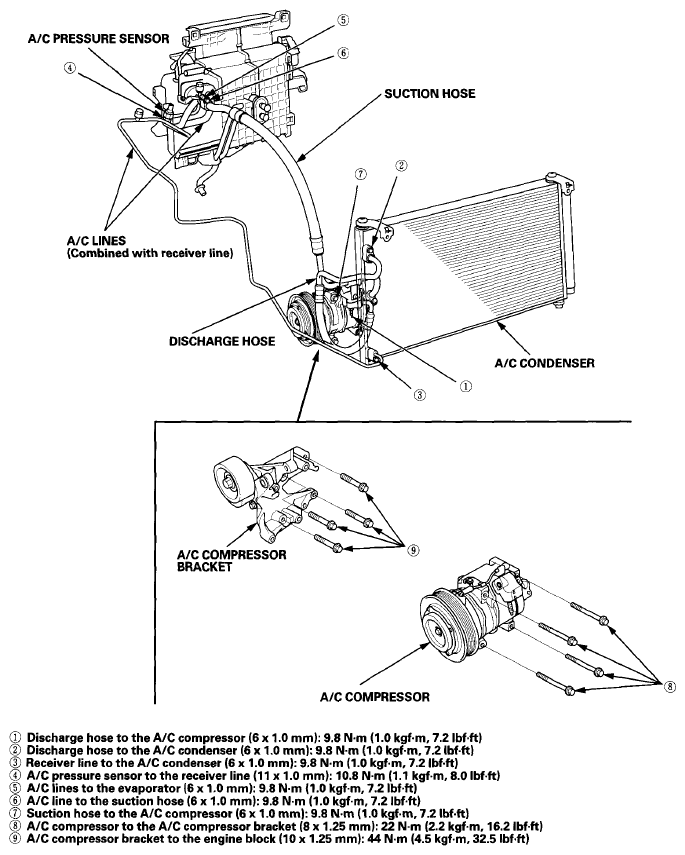

Fig 1: Identifying A/C Line & Related Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
