Exploded View

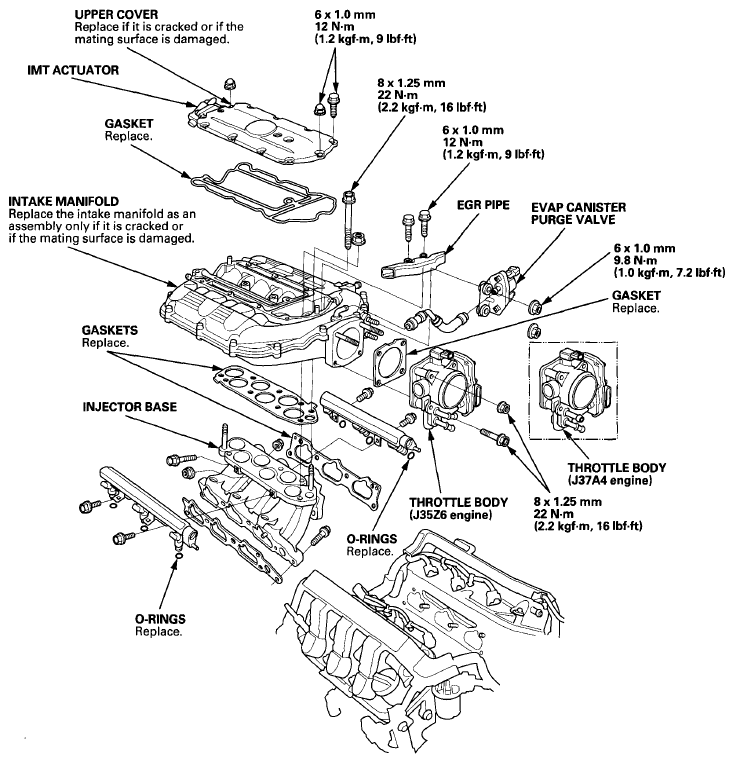

Fig 1: Exploded View Of Intake Manifold With Torque Specifications

G08069201

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Refer to the Exploded View if needed during this procedure.
