Installation-M/T model

Install the rear engine mount (A).

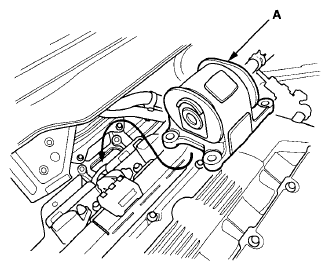

Fig 1: Identifying Rear Engine Mount (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the rear engine mount with its mounting holes and install the new rear engine mount mounting bolts (A).

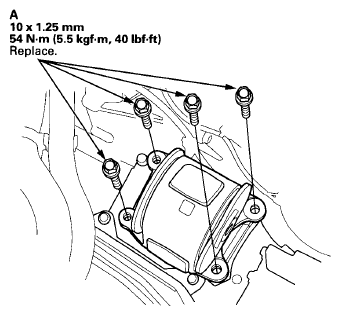

Fig 2: Rear Engine Mounting Bolts (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the rear engine mount bracket (A) from the top by sliding it into place from the driver's side.

Fig 3: Identifying Rear Engine Mount Bracket (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Loosely install the new two rear engine mount bracket mounting bolts (A) and the new rear engine mount mounting bolt (B).

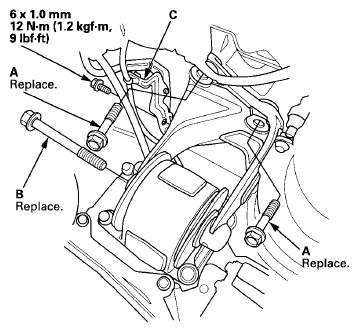

Fig 4: Harness Bracket And Mounting Bolts (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness bracket (C).
Remove the jack and the wood block, then raise the vehicle on the lift.
Tighten the new two rear engine mount bracket mounting bolts (A).

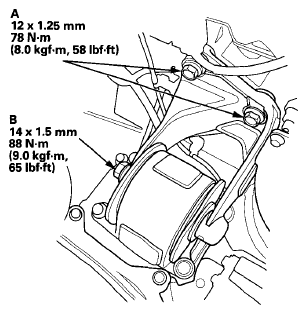

Fig 5: Rear Engine Mount Bracket Mounting Bolts (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install exhaust pipe A (see step 35).
Install the front subframe stiffener (see step 36).
Install the front splash shield (see FRONT SPLASH SHIELD REPLACEMENT ).
Lower the vehicle on the lift.
Tighten the two rear engine mount bracket mounting bolts (A), then tighten the rear engine mount mounting bolt (B).

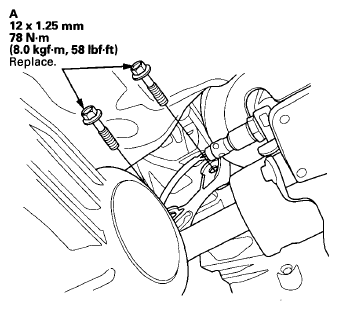

Fig 6: Rear Engine Mount Bracket Mounting Bolts And Mount Mounting Bolt (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the under-hood fuse/relay box with the mounting bracket, and tighten the two mounting nuts (A) and the mounting bolt (B).

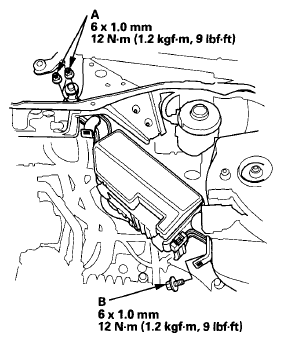

Fig 7: Mounting Nuts And Mounting Bolt Of Mounting Bracket (M/T Model) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the two harness clamps (A) and the brake booster vacuum hose clamp (B) to the under-hood fuse/relay box mounting bracket (C).

Fig 8: Identifying Harness Clamps, Hose Clamp And Mounting Bracket (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the harness connectors (A), then install the harness clamp (B) on the left strut tower.

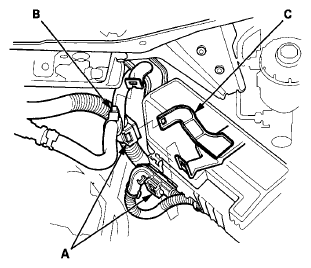

Fig 9: Identifying Harness Connectors And Harness Clamps On Left Strut Tower (M/T Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the strut brace (see FRAME BRACE REPLACEMENT ).
Install the cowl cover (see FRONT BULKHEAD BRACE COVER REPLACEMENT ).
Install the air cleaner (see THROTTLE BODY CLEANING ).
Do the battery installation procedure (see BATTERY REMOVAL AND INSTALLATION ).
Install the engine compartment covers (see ENGINE COMPARTMENT COVER REPLACEMENT ).
