BSI Radar Unit Removal/Installation

Remove the rear bumper (see LOWER FRONT BUMPER GRILLE REPLACEMENT ).
Remove the BSI radar unit (A).
1. Disconnect the 6P connector (B), and detach the harness clip (C).
2. Remove the bolts.

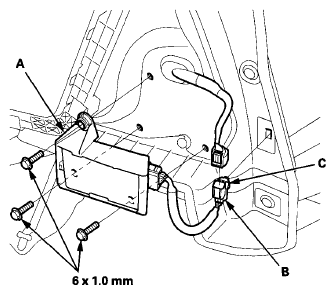

  Fig 1: Identifying BSI Radar Unit, 6P Connector, And Harness Clip
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clean the surface of the BSI radar unit.
Install the BSI radar unit (A).
1. Tighten the bolts.
2. Connect the 6P connector (B), and attach the harness clip (C).

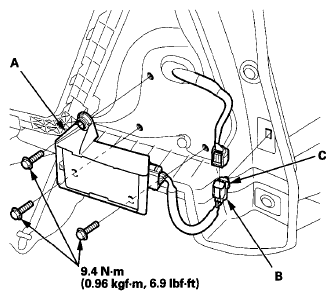

  Fig 2: BSI Radar Unit, 6P Connector, And Harness Clip With Torque Specifications
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Do the BSI radar unit aiming inspection (see BSI RADAR UNIT AIMING INSPECTION ).
