Under-Hood Fuse/Relay Box: Removal

  1. Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
  2. Open the cover (A), then remove the bolts (B) for the alternator and battery cable terminals.

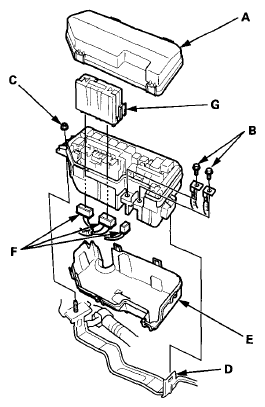

    Fig 1: Identifying Circuit Board, Connectors, Covers, Tab, Nut And Bolts
    G08071205Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the nut (C) and release the tab (D), then remove the bottom cover (E) from the under-hood fuse/relay box.
  4. Disconnect the connectors (F) from the under-hood fuse/relay box.
  5. Remove the relay circuit board (G) from the under-hood fuse/relay box.
  6. Carefully remove the relays by prying under the base of the relay (see POWER RELAY TEST ).
NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.
