Battery Removal and Installation: Installation

Install the battery (A), then install the battery setting plate (B).

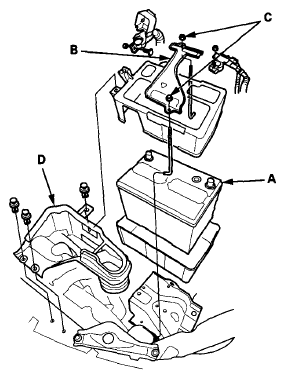

Fig 1: Identifying Air Intake Duct Splash Separator, Battery, Battery Setting Plate And Nuts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the two nuts (C) equally until the battery is stable.
NOTE: Do not deform the battery setting plate by over-tightening the nuts.
Install the air intake duct splash separator (D) and three clips.
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
NOTE: Make sure the battery is correctly installed, and that the positive terminal and the negative terminal are not connected in reverse.
