DTC 12: Right-Front Wheel Speed Sensor Signal Malfunction; DTC 14: Left-Front Wheel Speed Sensor Signal Malfunction; DTC 16: Right-Rear Wheel Speed Sensor Signal Malfunction; DTC 18: Left-Rear Wheel Speed Sensor Signal Malfunction

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information (see GENERAL TROUBLESHOOTING INFORMATION ).
If the ABS and the VSA indicators come on because of electrical noise, the indicator goes off when you test-drive the vehicle at 9 mph (15 km/h) after the system returns to normal.

Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

Check that the appropriate wheel speed sensor is properly mounted (see WHEEL SPEED SENSOR REPLACEMENT ).

DTC	Appropriate Wheel Speed Sensor
12	Right-front
14	Left-front
16	Right-rear
18	Left-rear

Is the wheel speed sensor installation OK?

YES - Go to step 3.

NO - Reinstall the wheel speed sensor, and check the mounting position (see WHEEL SPEED SENSOR REPLACEMENT ).

Inspect the appropriate magnetic encoder for damage, debris, and correct installation.

DTC	Appropriate Magnetic Encoder	Note
12	Right-front	Remove the driveshaft outboard joint from the appropriate wheel hub (see KNUCKLE/HUB REPLACEMENT ).
14	Left-front
16	Right-rear	Remove the hub bearing unit (see HUB BEARING UNIT REPLACEMENT ).
18	Left-rear

Is the magnetic encoder OK?

YES - Go to step 4.

NO - Remove the debris from the magnetic encoder, or replace the wheel bearing (front) or the hub bearing unit (rear):

Front: Replace the front wheel bearing (see WHEEL BEARING REPLACEMENT ).
Rear: Replace the rear hub bearing unit (see HUB BEARING UNIT REPLACEMENT ).

Disconnect the VSA modulator-control unit 47P connector (see step 5).

Check for continuity between the appropriate wheel speed sensor GND terminal and the other wheel speed sensor GND terminals of the VSA modulator-control unit 47P connector (see table below).

DTC	Appropriate Terminal	Other Terminals
12	FR-GND: No. 33	No. 46	No. 42	No. 37
14	FL-GND: No. 46	No. 33	No. 42	No. 37
16	RR-GND: No. 42	No. 33	No. 46	No. 37
18	RL-GND: No. 37	No. 33	No. 46	No. 42

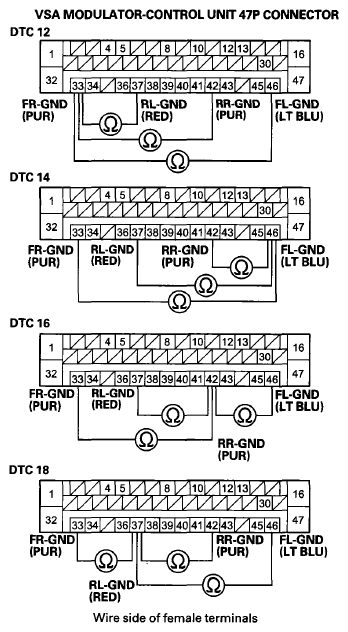

Fig 1: Checking Continuity Between Both Wheel Speed Sensor GND Terminals Of VSA Modulator-Control Unit 47P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair a short in the wires between the appropriate wheel speed sensor and the other wheel speed sensor.

NO - Go to step 6.

Substitute a known-good wheel speed sensor (see WHEEL SPEED SENSOR REPLACEMENT ).
Reconnect all connectors.
Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
Clear the DTC with the HDS.
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Test-drive the vehicle at 19 mph (30 km/h) or more.
NOTE: Drive the vehicle on the road, not on a lift.
Check for DTCs with the HDS.
Is DTC 12, 14, 16, or 18 indicated?

YES - Go to step 13.

NO - Replace the original wheel speed sensor (see WHEEL SPEED SENSOR REPLACEMENT ).
Update the VSA modulator-control unit if it does not have the latest software (see VSA MODULATOR-CONTROL UNIT UPDATE ).
Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
Test-drive the vehicle at 19 mph (30 km/h) or more.
NOTE: Drive the vehicle on the road, not on a lift.
Check for DTCs with the HDS.
Is DTC 12, 14, 16, or 18 indicated?

YES - Check for loose terminals in the VSA modulator-control unit 47P connector. If the VSA modulator-control unit was updated and the symptom/indication is still present, replace the VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT REMOVAL AND INSTALLATION ).

NO - If the VSA modulator-control unit was updated, troubleshooting is complete. If any other DTCs are indicated, go to the indicated DTCS TROUBLESHOOTING .
