Component Location Index

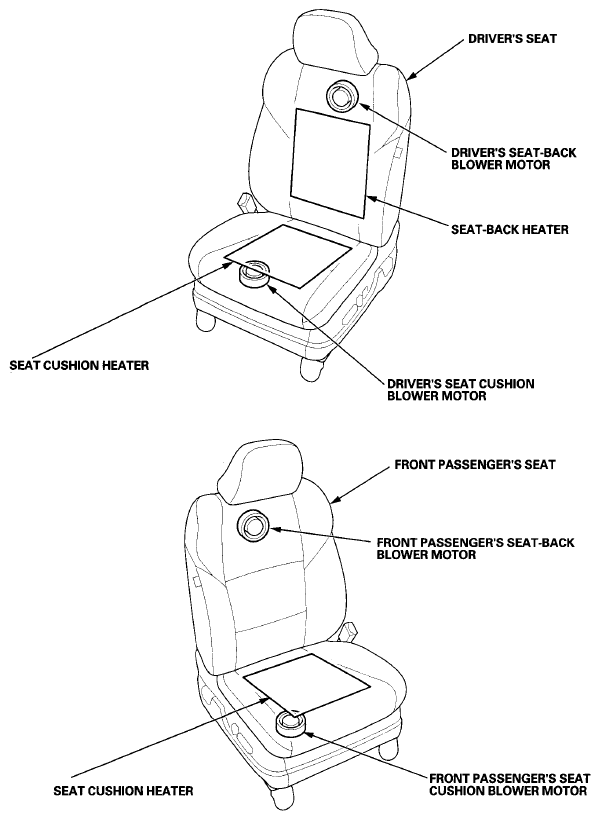

Fig 1: Ventilated Seats Components Location (1 Of 2)
G08071646Courtesy of AMERICAN HONDA MOTOR CO., INC.

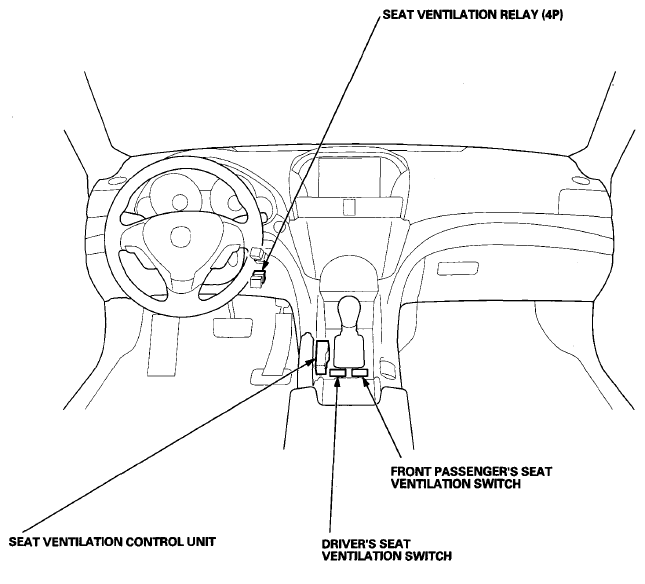

Fig 2: Ventilated Seats Components Location (2 Of 2)
G08071647Courtesy of AMERICAN HONDA MOTOR CO., INC.
