Automatic Dimming Inside Mirror
>>
Circuit Diagram
>>
Without Keyless Access System
Without Keyless Access System

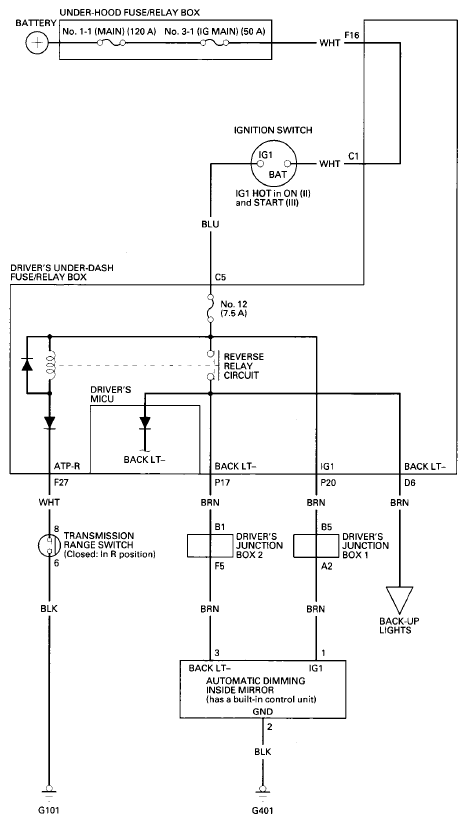

Fig 1: Automatic Dimming Inside Mirror Circuit Wiring Diagram (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
