Canada Models

1. Slowly peel off the original side sill protection tape.
2. Clean the side sill panel bonding surface with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
3. Peel the adhesive backing from the side sill protection tape.
4. Align the side sill protection tapes (A, B) with the edge of the side sill panel (C), then press them into place.

Unit: mm (in).

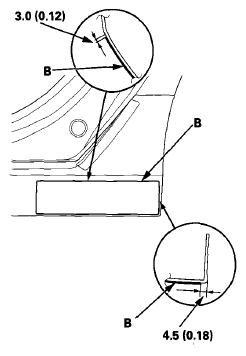

Fig 1: Identifying Protection Tapes

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Side Sill Panel

Courtesy of AMERICAN HONDA MOTOR CO., INC.
