Retainer Replacement

NOTE:
  • Take care not to scratch the body or damage the rear window.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  1. Pry up the middle hooks (A) with a flat-tip screwdriver, and slide the retainers (B) upward to release them from the pins (C) on the C-pillar.

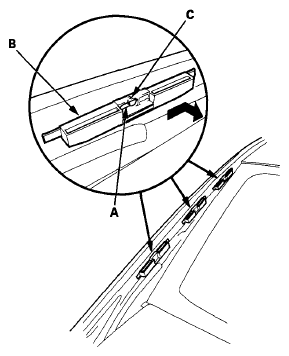

    Fig 1: Identifying Middle Hooks, Retainers And Pins
    G08070893Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the retainers in the reverse order of removal, and make sure the retainers are securely fastened on the pins.
