Emblem/Sticker Replacement

NOTE: When removing the emblems, take care not to scratch the body.

To remove the front "A" emblem, raise the vehicle on a lift. From underneath the vehicle, remove the two screws, then remove the emblem.
Clean the body surfaces where emblems are applied with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
Apply the emblems where shown.

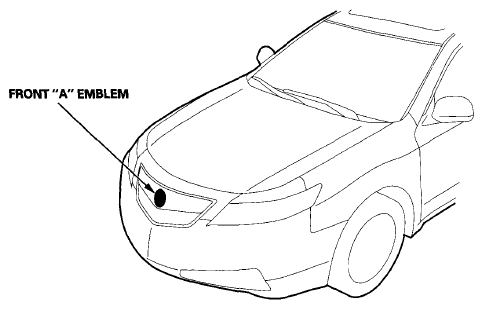

Fig 1: Identifying Front "A" Emblem

Courtesy of AMERICAN HONDA MOTOR CO., INC.

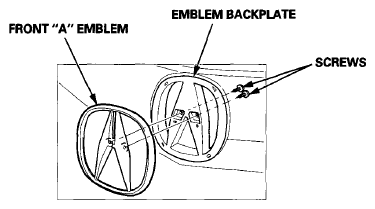

Fig 2: Identifying Front "A" Emblem, Emblem Backplate And Screws

Courtesy of AMERICAN HONDA MOTOR CO., INC.

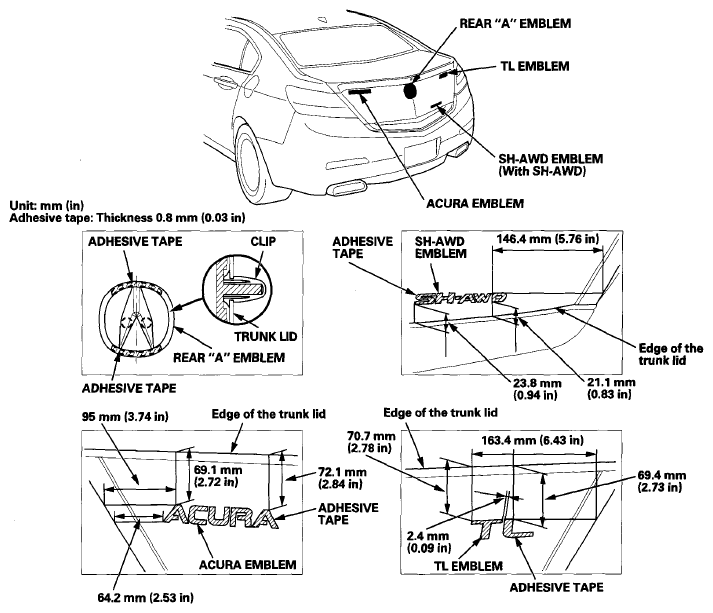

Fig 3: Identifying Rear Emblems

Courtesy of AMERICAN HONDA MOTOR CO., INC.
