Washer Tube Replacement: Windshield

  1. Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the washer nozzles and clips, then remove the tubes.

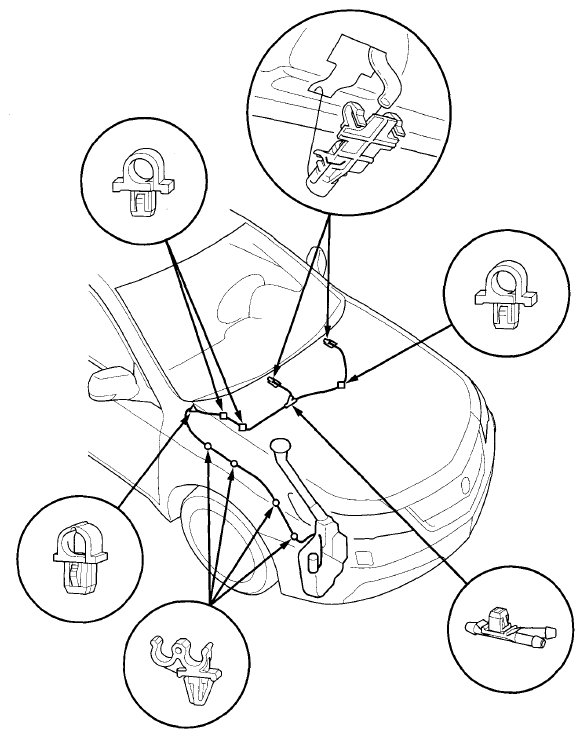

    Fig 1: Identifying Windshield Washer Tube, Washer Nozzles & Clips
    G08071524Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install in the reverse order of removal. Take care not to pinch the washer tubes. Check the washer operation.
