System Description
>>
HDD Navigation System
>>
USA models
USA models

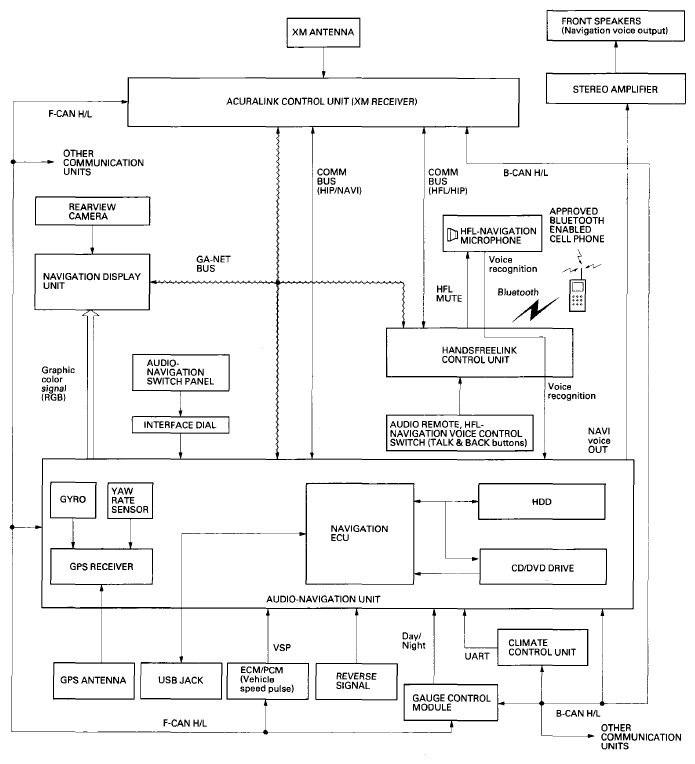

Fig 1: HDD Navigation System Diagram - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
