System Description
>>
HDD Navigation System
>>
Canada models
Canada models

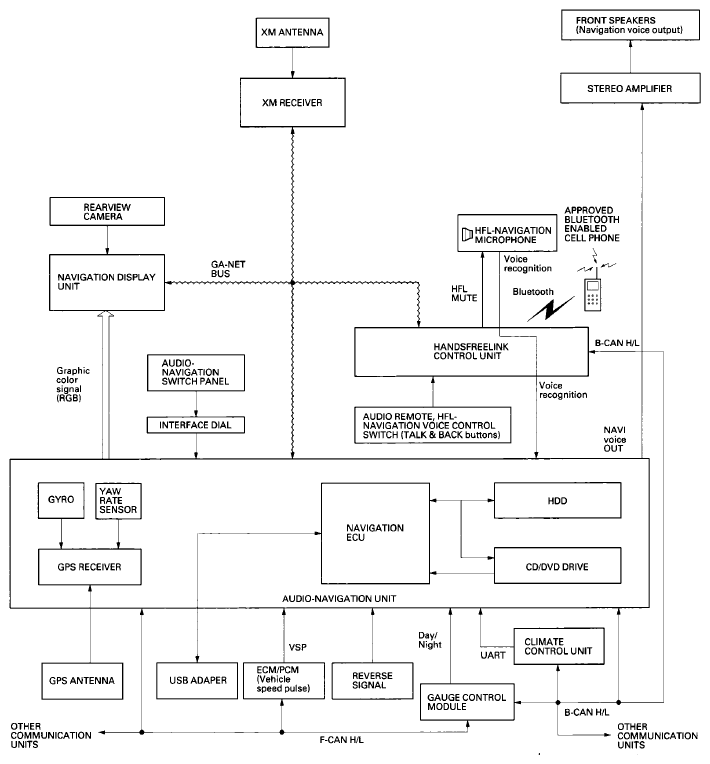

Fig 1: HDD Navigation System Diagram - Canada Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
