Circuit Diagram

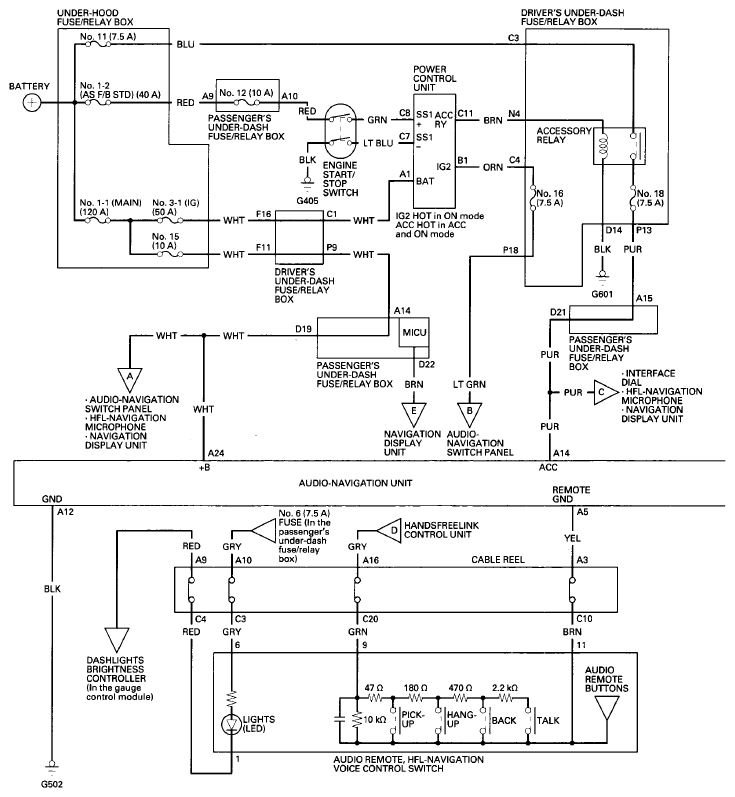

Fig 1: Navigation System - Circuit Diagram (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

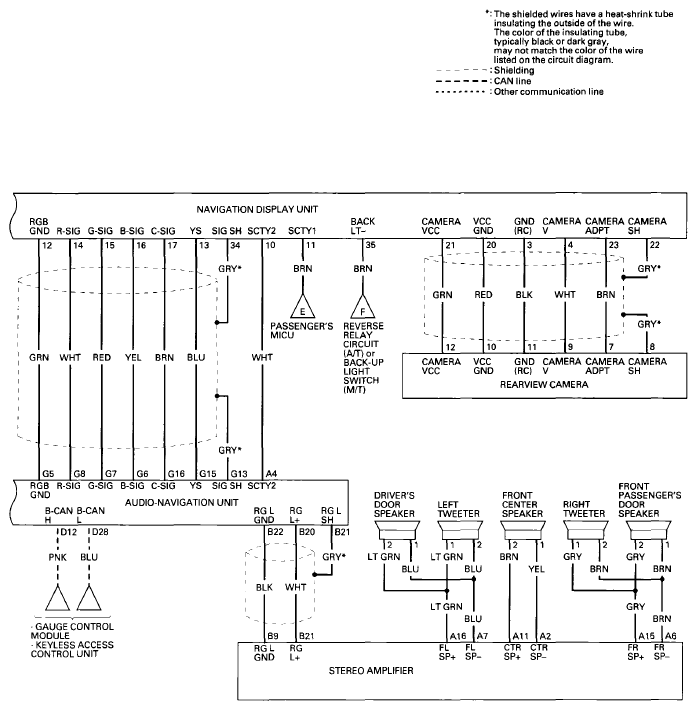

Fig 2: Navigation System - Circuit Diagram (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

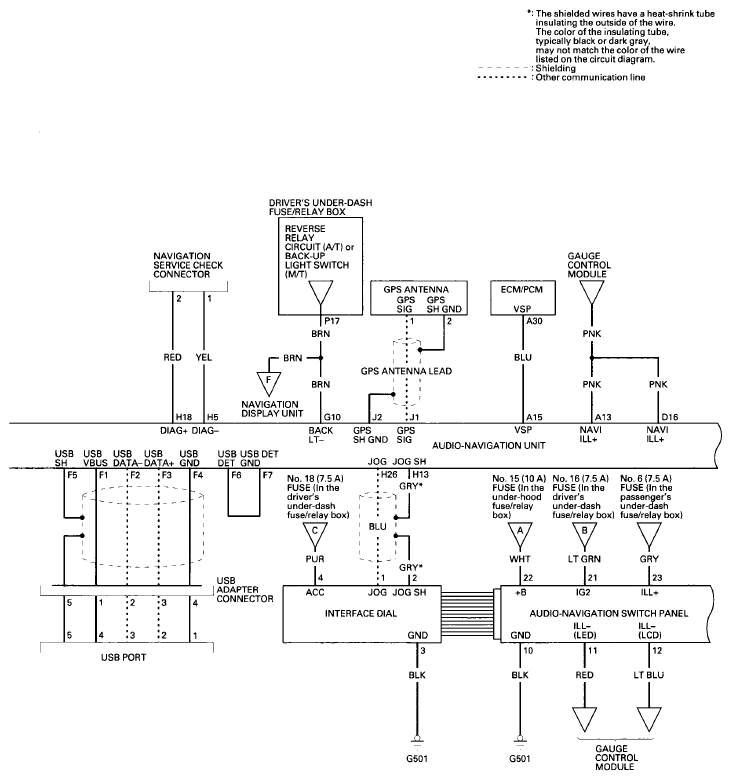

Fig 3: Navigation System - Circuit Diagram (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

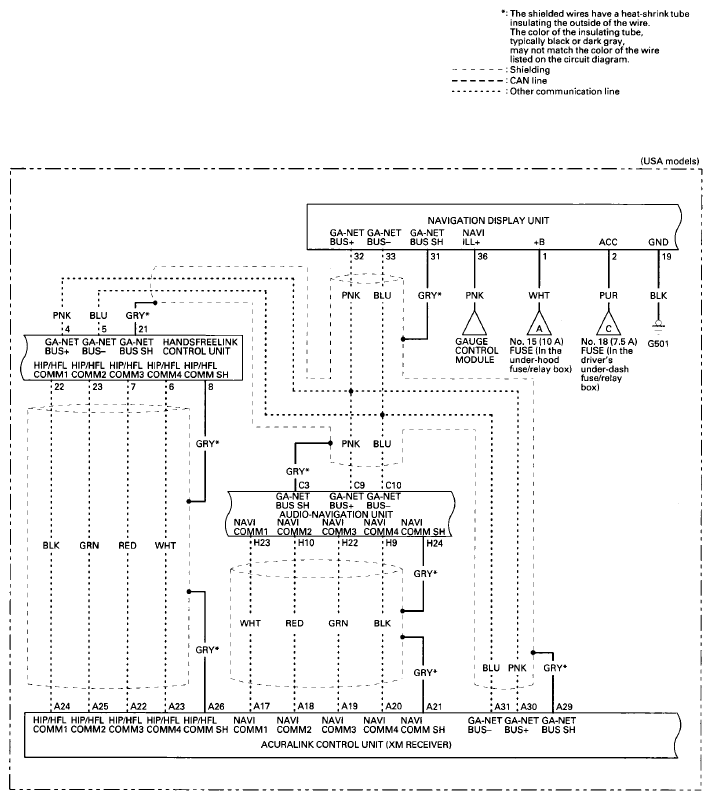

Fig 4: Navigation System - Circuit Diagram (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

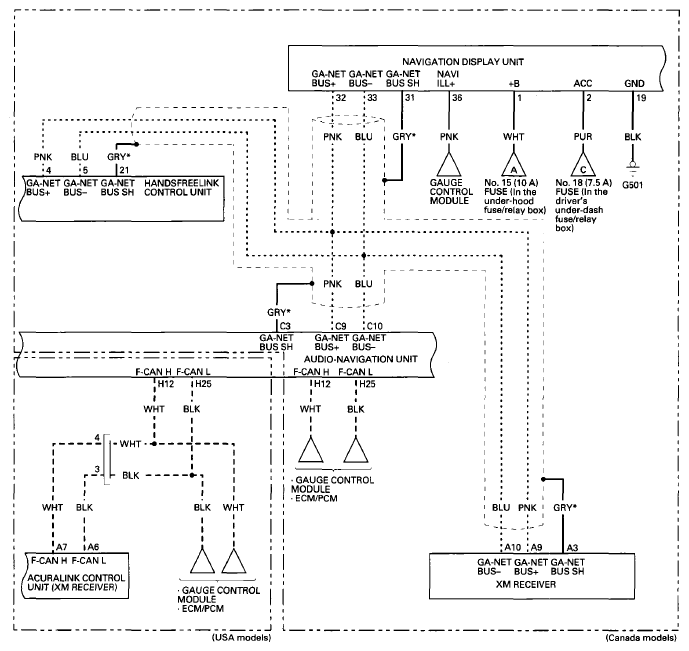

Fig 5: Navigation System - Circuit Diagram (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

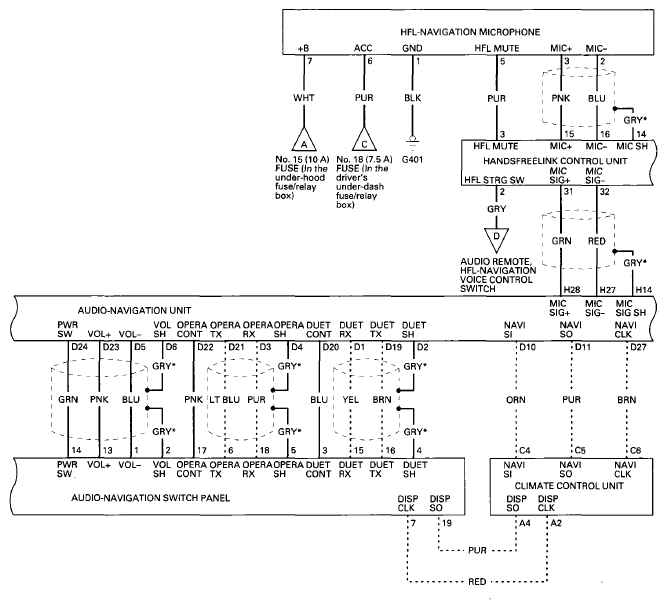

Fig 6: Navigation System - Circuit Diagram (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
