Countershaft Bearing Replacement

Special Tools Required

• Adjustable Bearing Puller, 25-40 mm 07736-A01000B
• Bearing Remover Shaft 07JAC-PH80200
• Slide Hammer 07936-371020A
• Driver Handle, 15 x 135L 07749-0010000
• Bearing Driver Attachment, 72 x 75 mm 07746-0010600

1. Remove the countershaft bearing from the torque converter housing using the adjustable bearing puller, the bearing remover shaft, and the slide hammer.
   Fig 1: Removing Countershaft Bearing From Torque Converter Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Check the ATF guide plate (A), and replace it if it is damaged.
   Fig 2: Identifying ATF Guide Plate

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install a new bearing (B) in the direction shown.

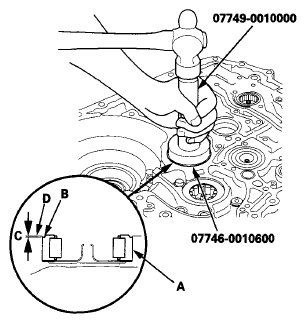

4. Drive the bearing (A) in the torque converter housing using the driver handle and the bearing driver attachment; install the bearing outer notch-cut (B) to a depth (C) of 0-0.14 mm (0-0.0055 in) below the torque converter housing surface (D).
   Fig 3: Installing New Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
