PCM Circuit Diagram

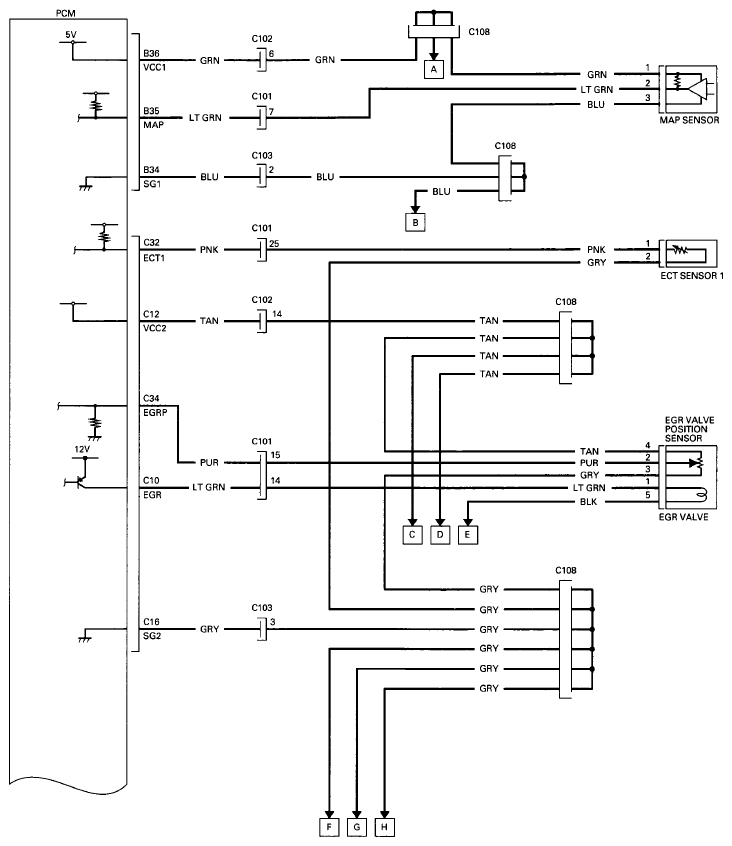

Fig 1: PCM Circuit Diagram (1 Of 18)

G07361795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

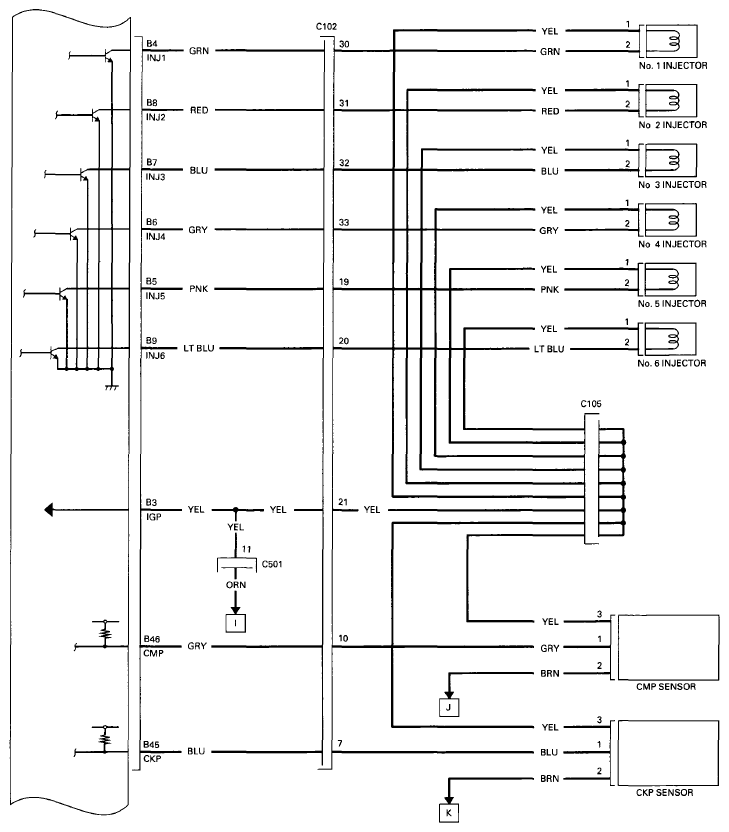

Fig 2: PCM Circuit Diagram (2 Of 18)

G07361796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

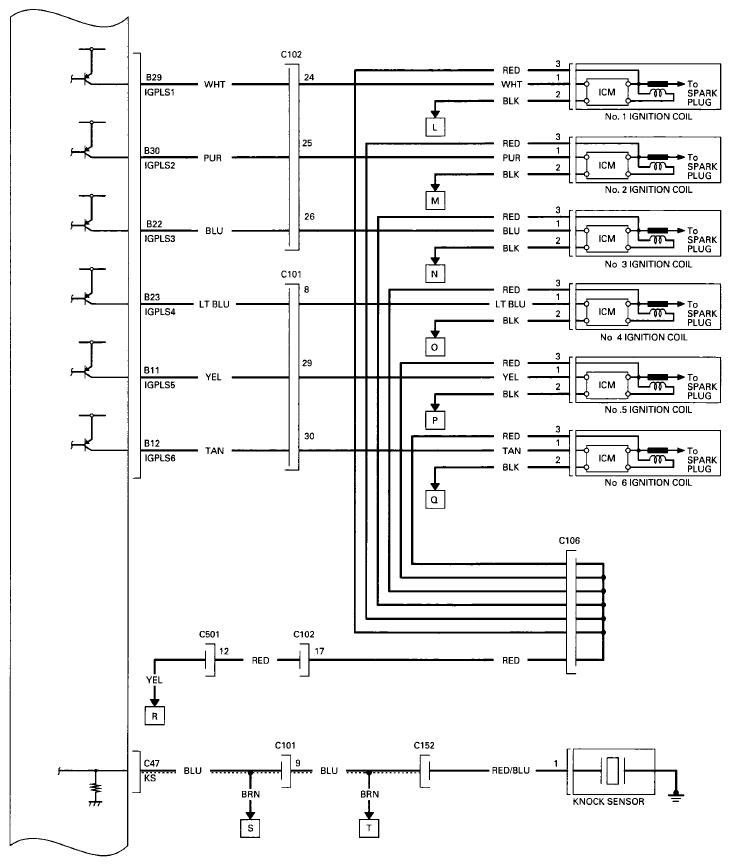

Fig 3: PCM Circuit Diagram (3 Of 18)

G07361797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

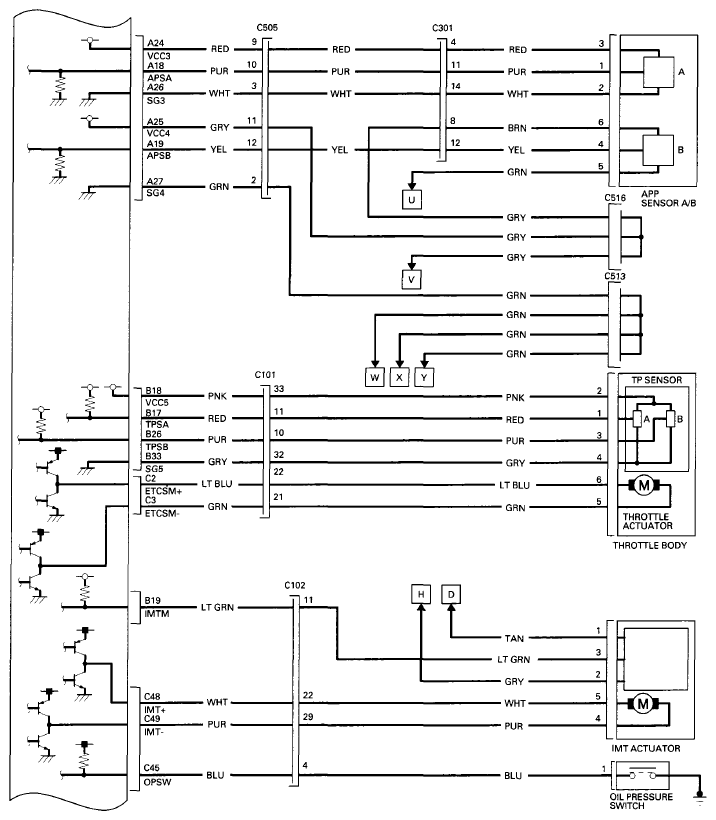

Fig 4: PCM Circuit Diagram (4 Of 18)

G07361798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

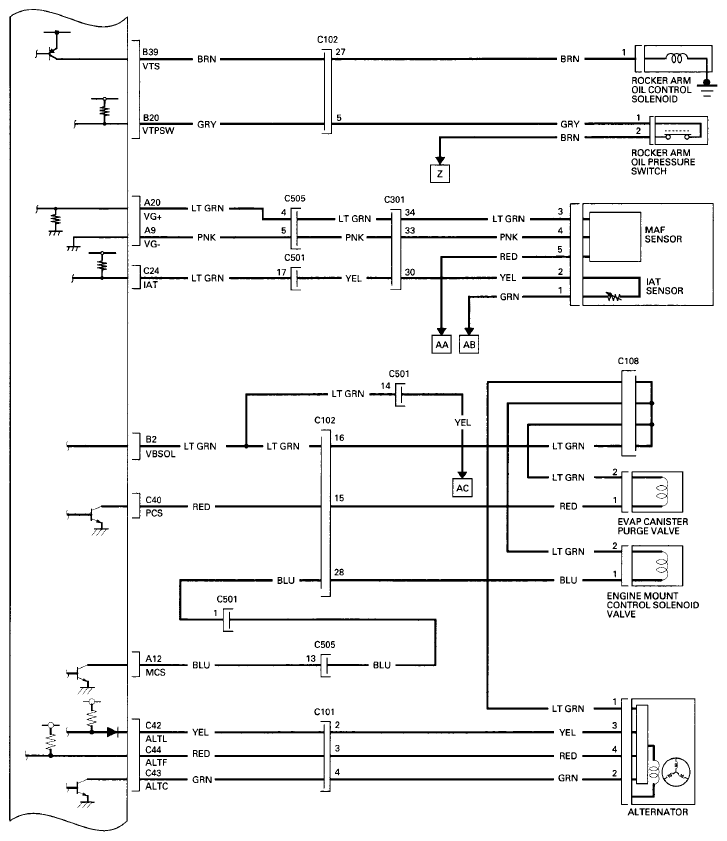

Fig 5: PCM Circuit Diagram (5 Of 18)

G07361799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

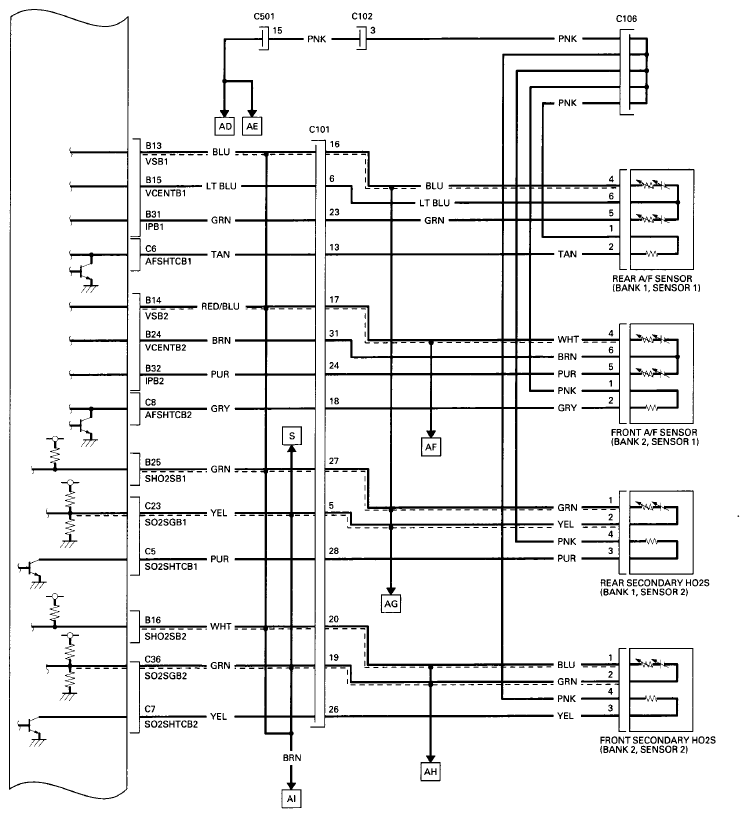

Fig 6: PCM Circuit Diagram (6 Of 18)

G07361800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

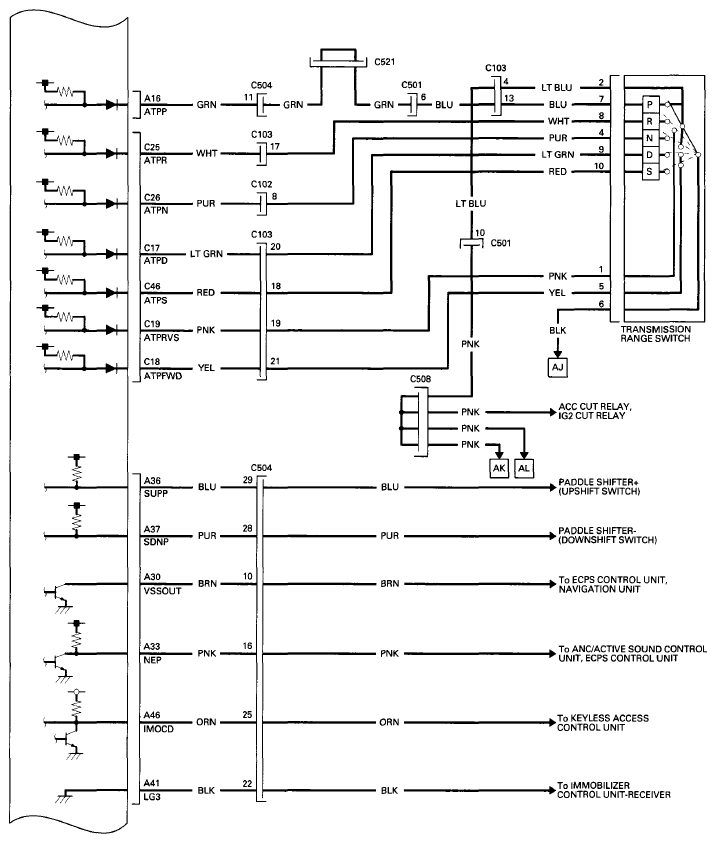

Fig 7: PCM Circuit Diagram (7 Of 18)

G07361801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

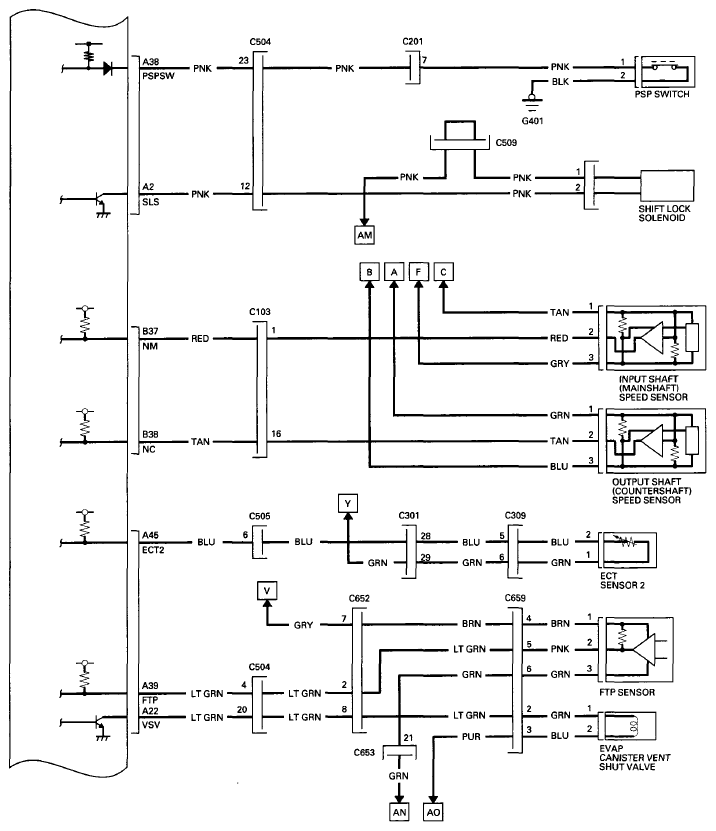

Fig 8: PCM Circuit Diagram (8 Of 18)

G07361802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

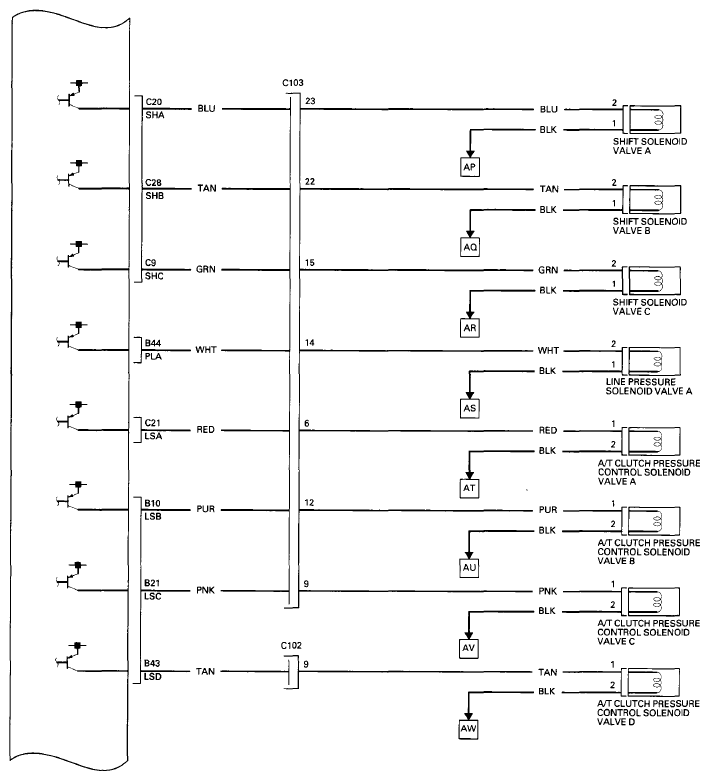

Fig 9: PCM Circuit Diagram (9 Of 18)

G07361803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

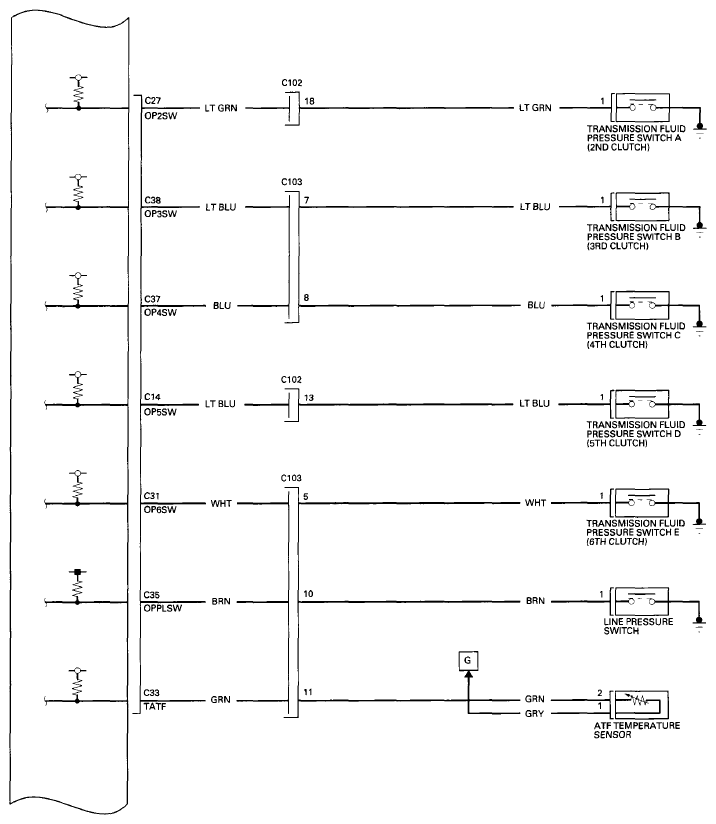

Fig 10: PCM Circuit Diagram (10 Of 18)

G07361804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

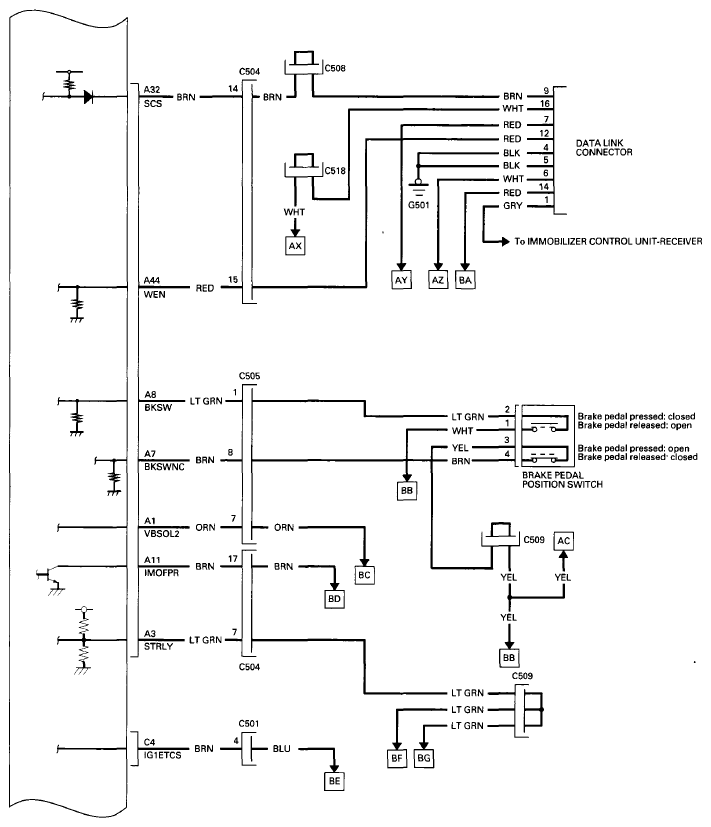

Fig 11: PCM Circuit Diagram (11 Of 18)

G07361805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

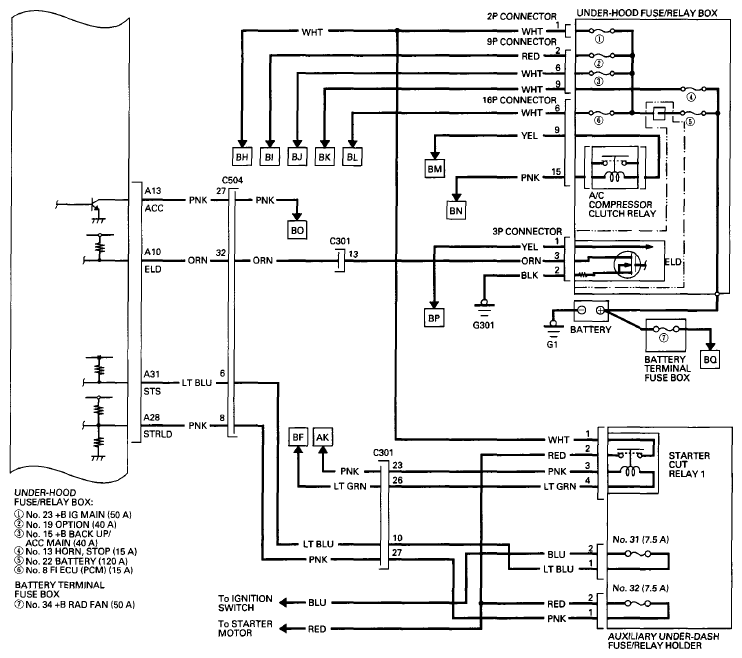

Fig 12: PCM Circuit Diagram (12 Of 18)

G07361806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

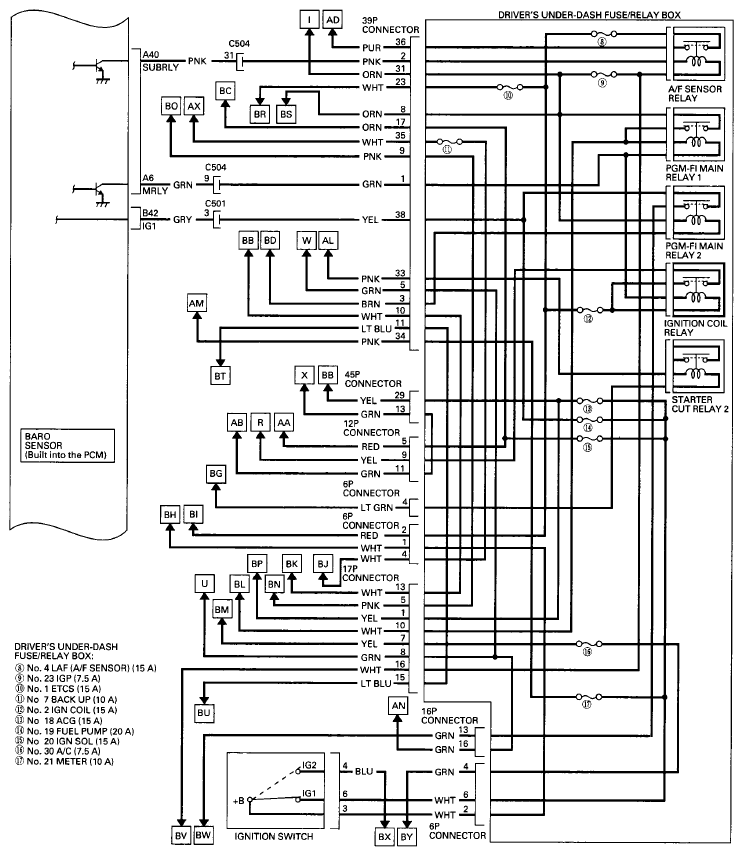

Fig 13: PCM Circuit Diagram (13 Of 18)

G07361807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

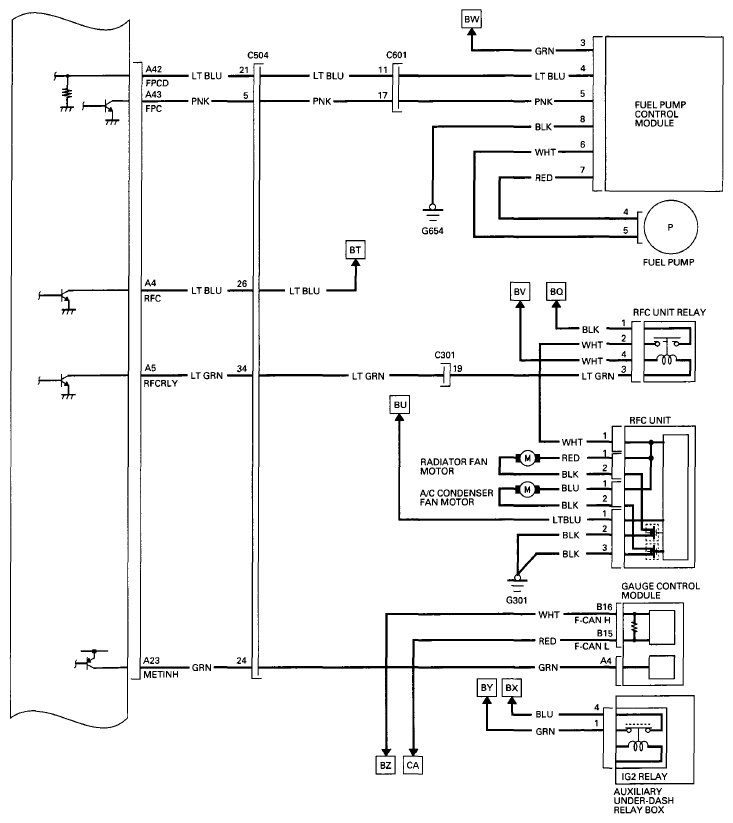

Fig 14: PCM Circuit Diagram (14 Of 18)

G07361808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

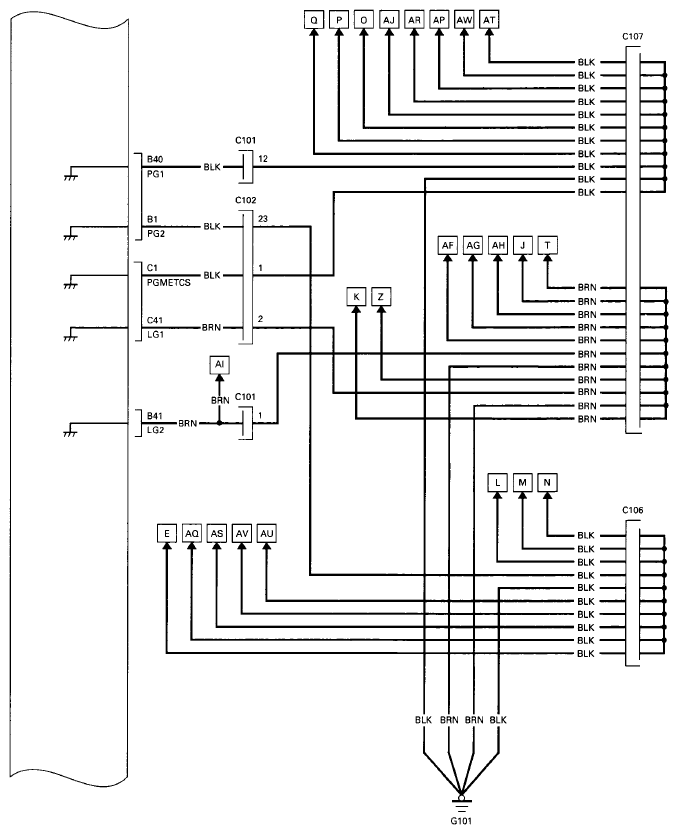

Fig 15: PCM Circuit Diagram (15 Of 18)

G07361809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

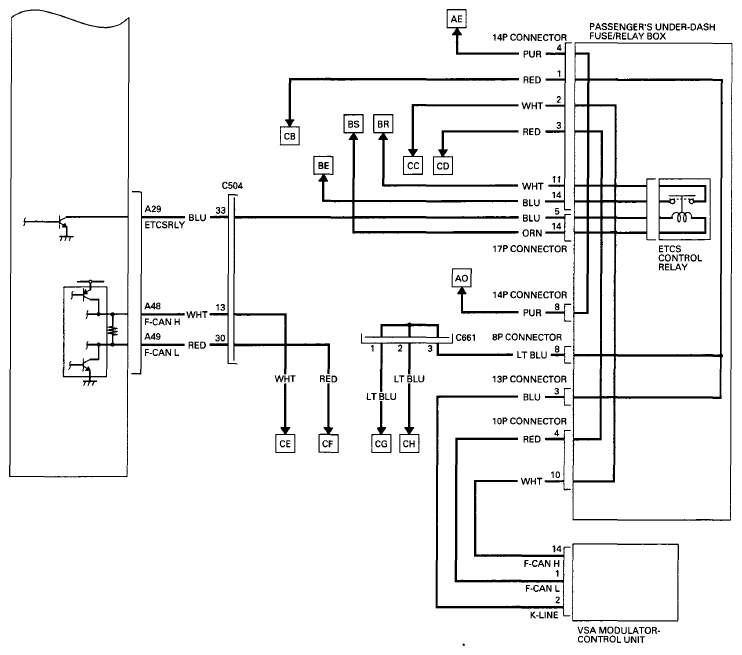

Fig 16: PCM Circuit Diagram (16 Of 18)

G07361810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

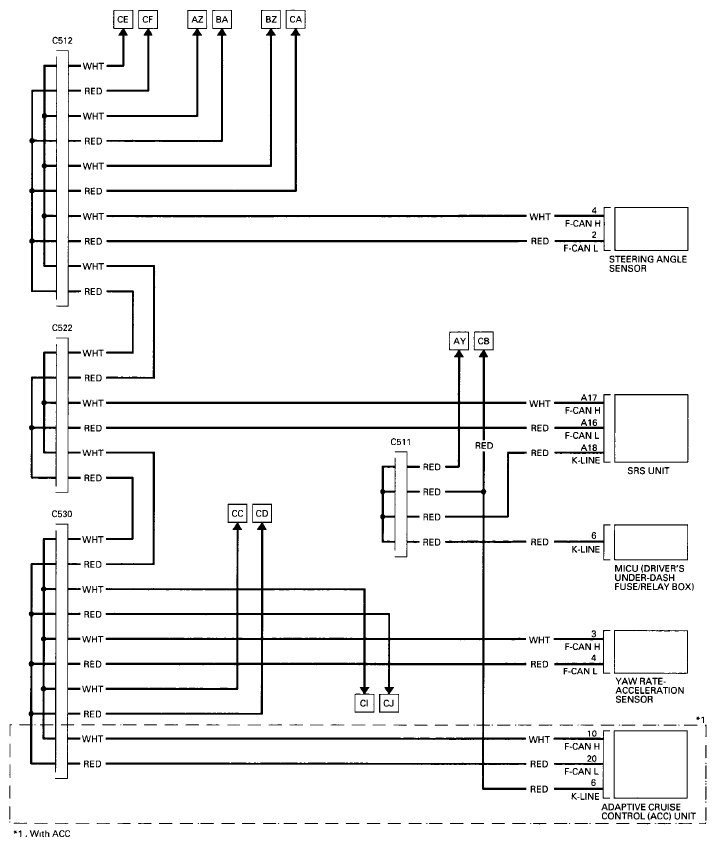

Fig 17: PCM Circuit Diagram (17 Of 18)

G07361811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

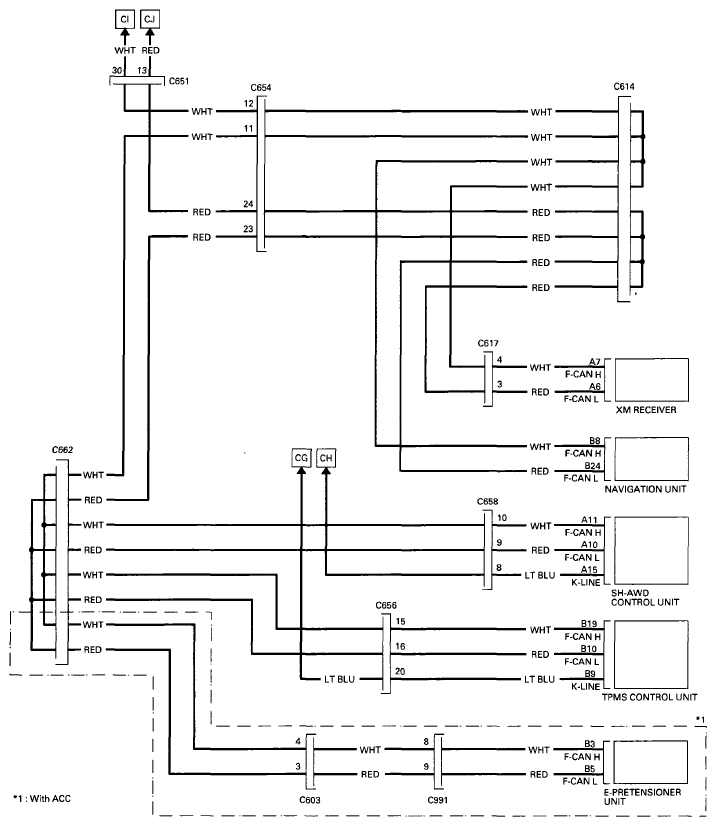

Fig 18: PCM Circuit Diagram (18 Of 18)

G07361812

Courtesy of AMERICAN HONDA MOTOR CO., INC.
