Fuel and Emissions System Diagram
Fuel and Emissions System Diagram

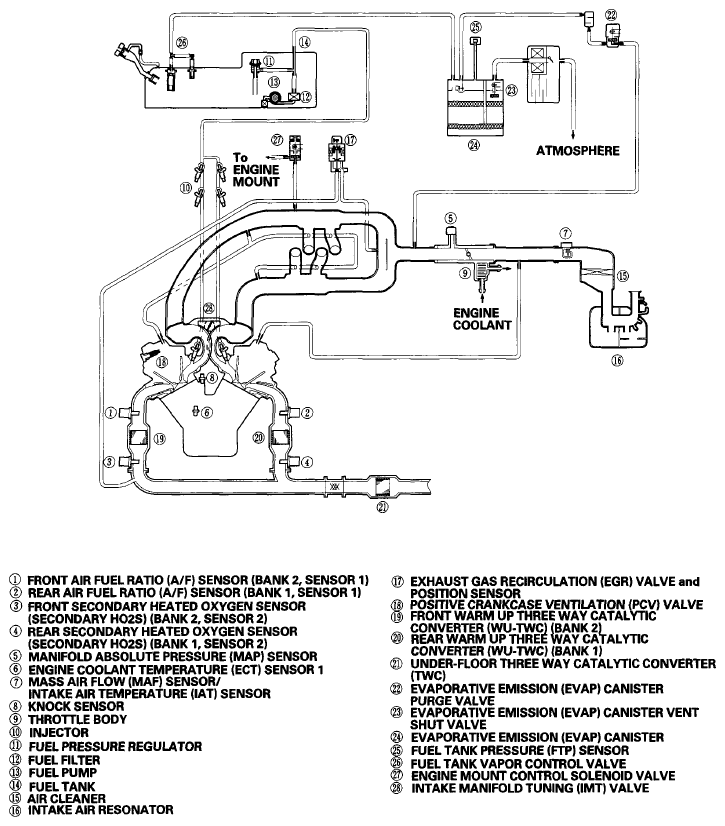

Fig 1: Fuel And Emissions System Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
