Component Location Index
Component Location Index

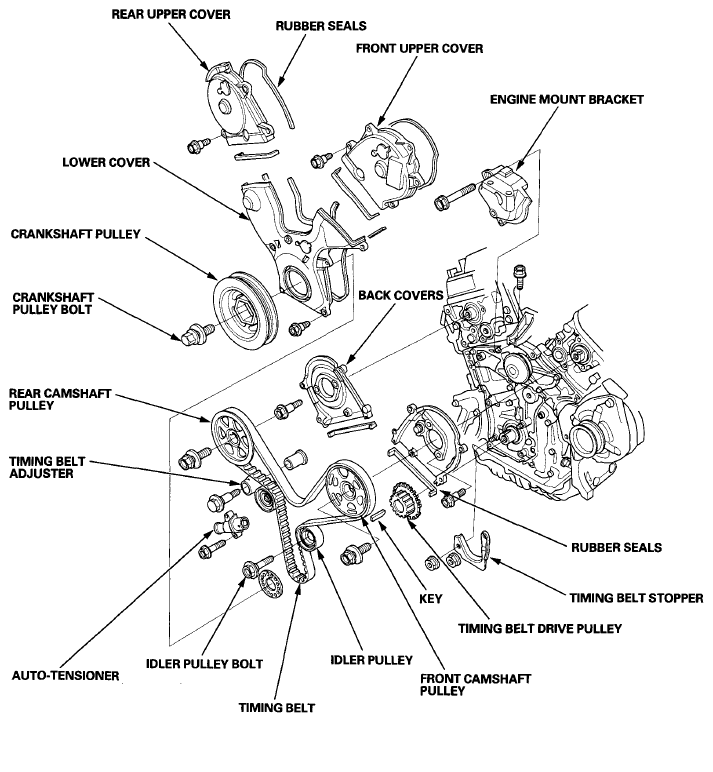

Fig 1: Exploded View Of Timing Belt Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

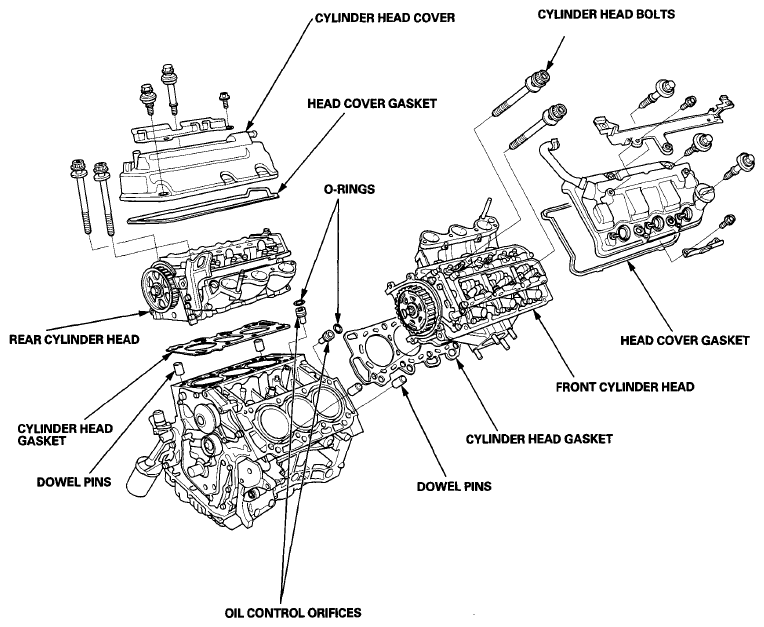

Fig 2: Exploded View Of Cylinder Head Replacement Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

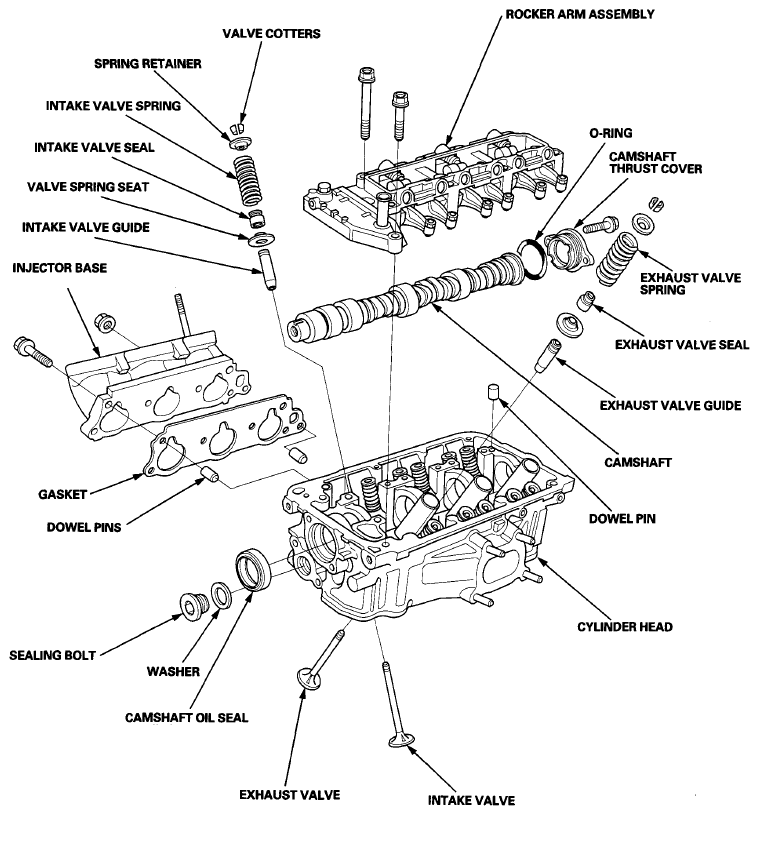

Fig 3: Exploded View Of Cylinder Head - Front Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

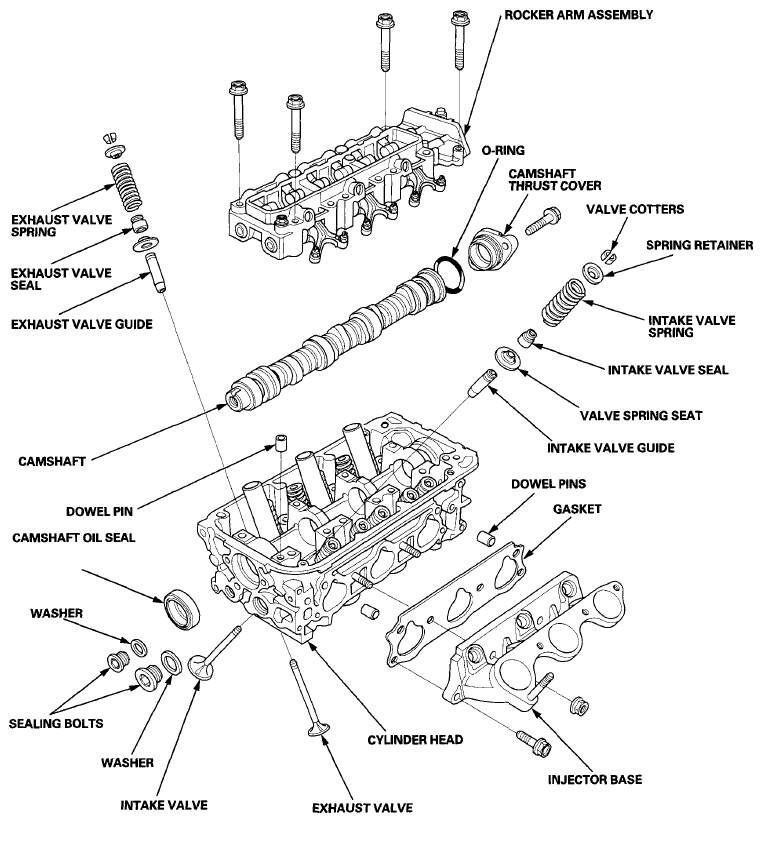

Fig 4: Exploded View Of Cylinder Head - Rear Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
