Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Starting System
Starting System
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

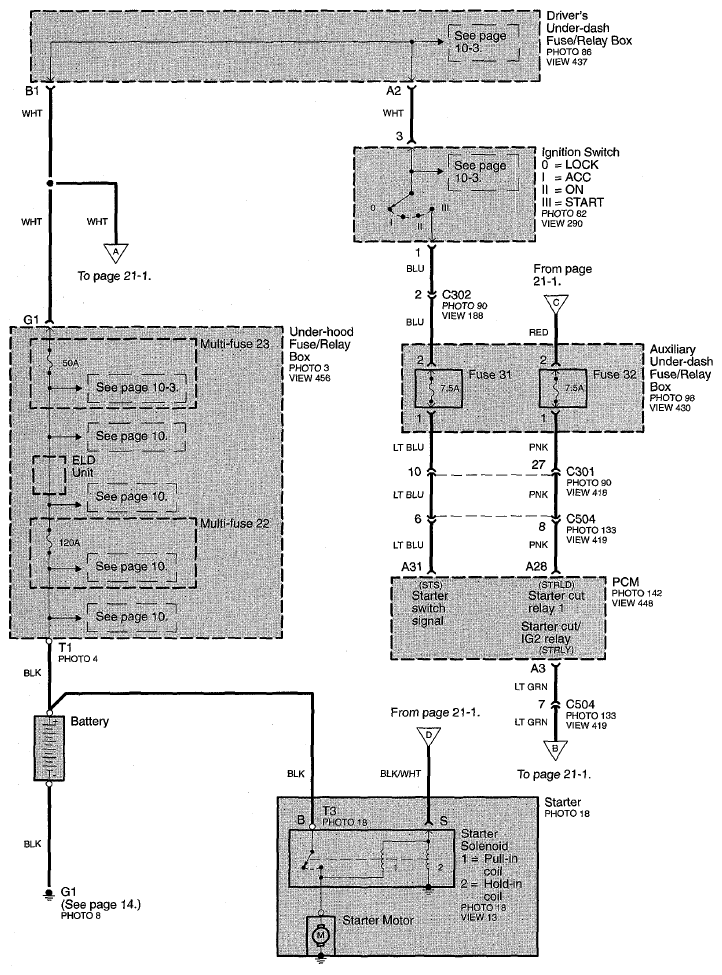

Fig 1: Starting System Circuit Diagram (Page 21)

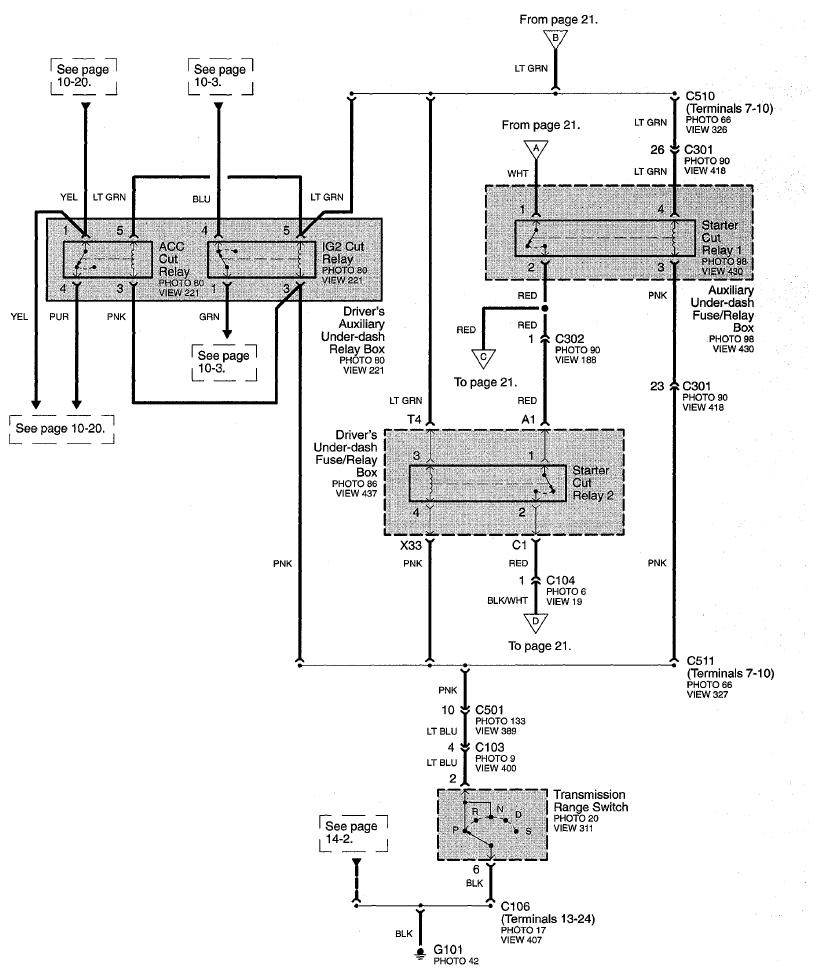

Fig 2: Starting System Circuit Diagram (Page 21-1)
