GA-NET (USA: Technology Package, Advance Package)

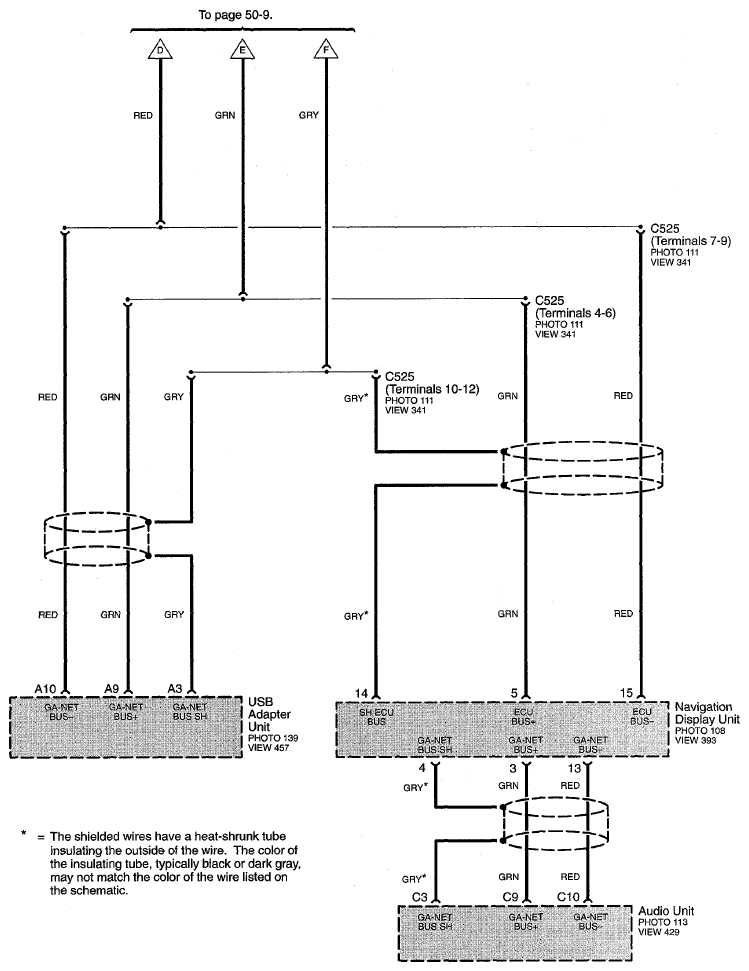

Fig 1: GA-NET (USA: Technology Package, Advance Package) Circuit Diagram (Page 50-8)
G07748232

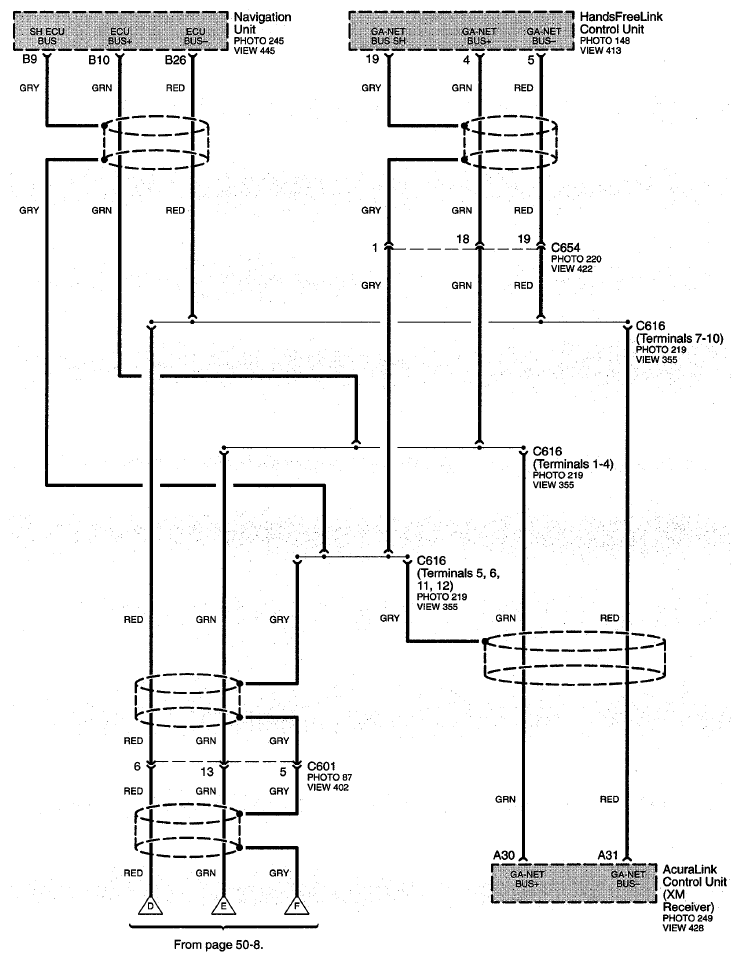

Fig 2: GA-NET (USA: Technology Package, Advance Package) Circuit Diagram (Page 50-9)
G07748233
