Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Integrated Control System
>>
B-CAN Communication Line
B-CAN Communication Line

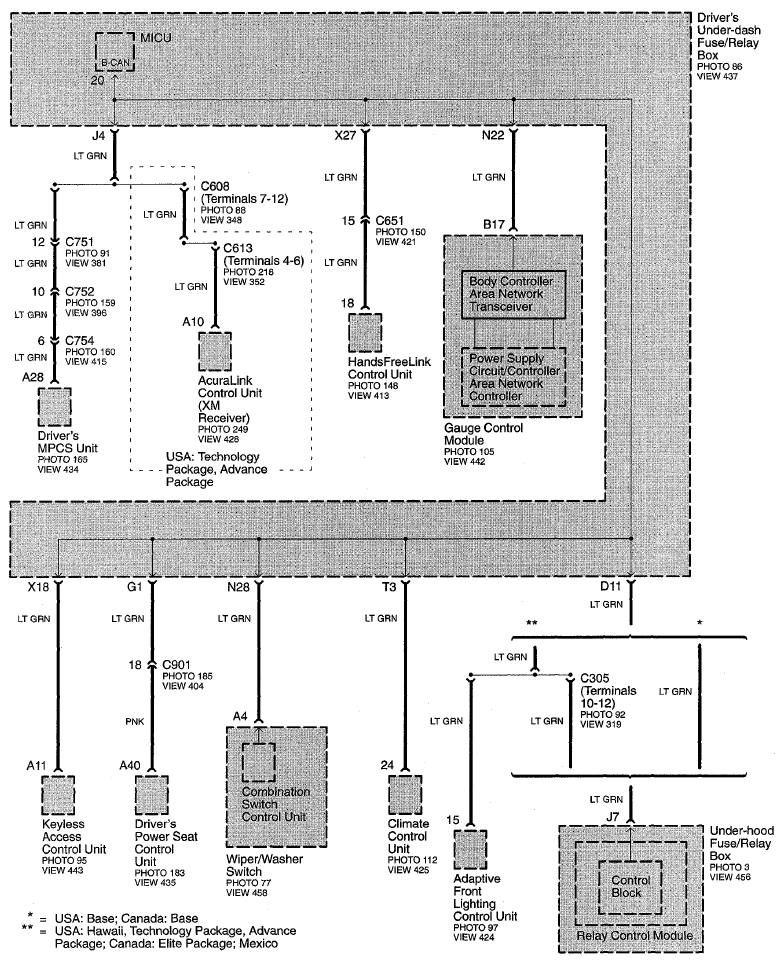

Fig 1: B-CAN Communication Line Circuit Diagram (Page 50-2)
