Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Ignition System
Ignition System
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

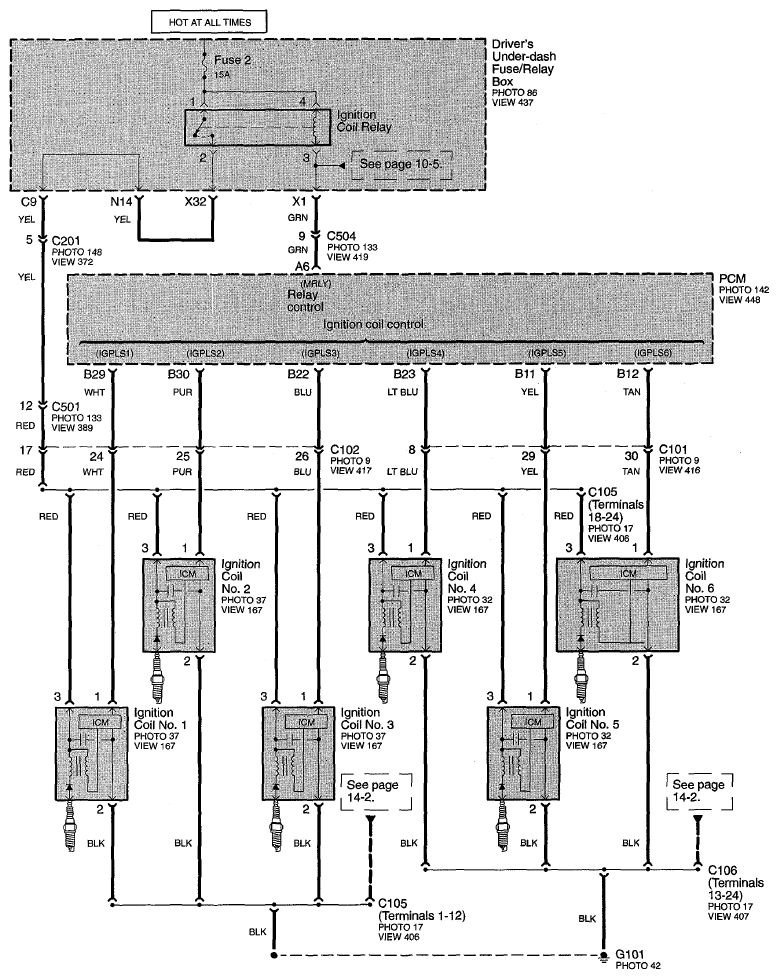

Fig 1: Ignition System Circuit Diagram (Page 20)
