HomeLink® Remote Control System

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

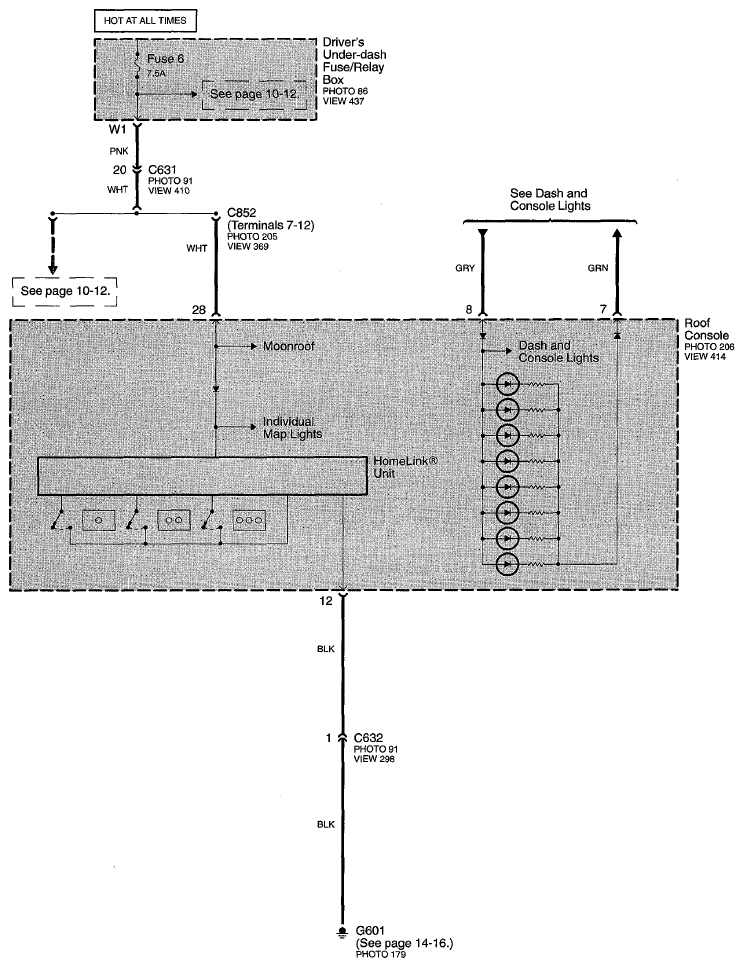

Fig 1: HomeLink® Remote Control System Circuit Diagram (Page 157)
G07748444
