HFL System (HandsFreeLink): Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

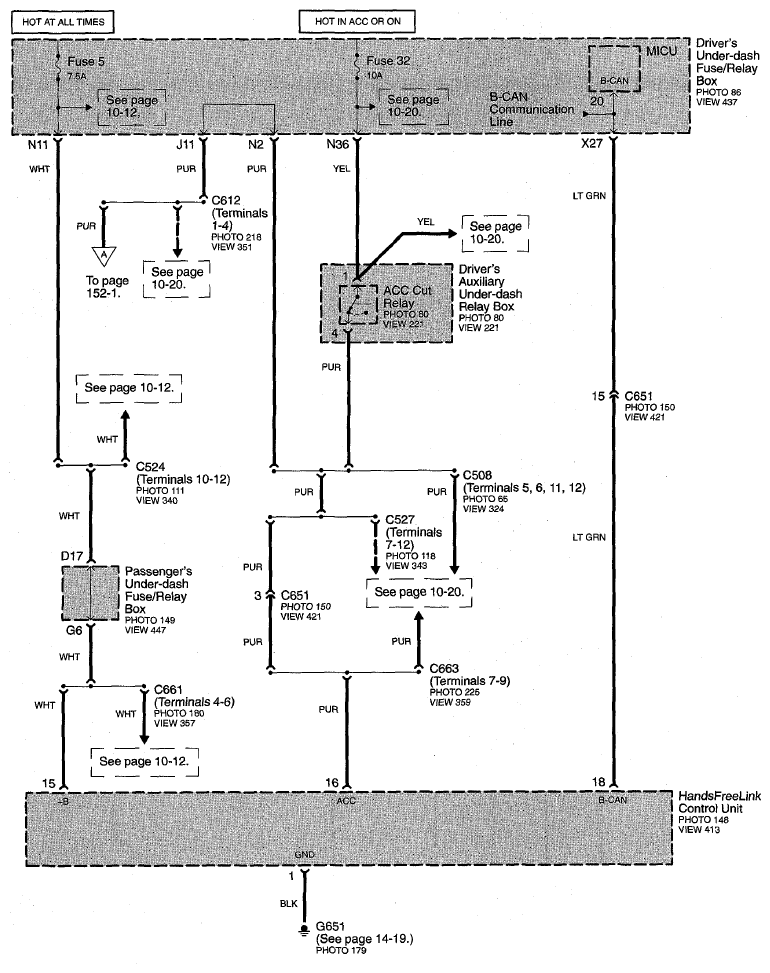

Fig 1: HFL System (HandsFreeLink) Circuit Diagram (Page 152)
G07748406

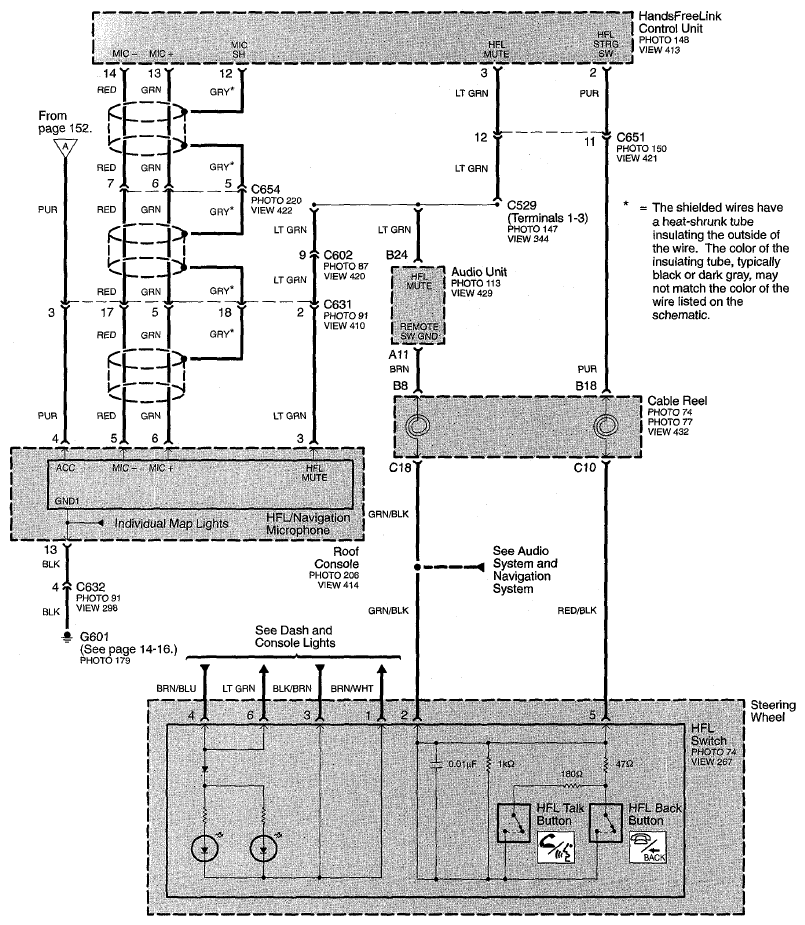

Fig 2: HFL System (HandsFreeLink) Circuit Diagram (Page 152-1)
G07748407

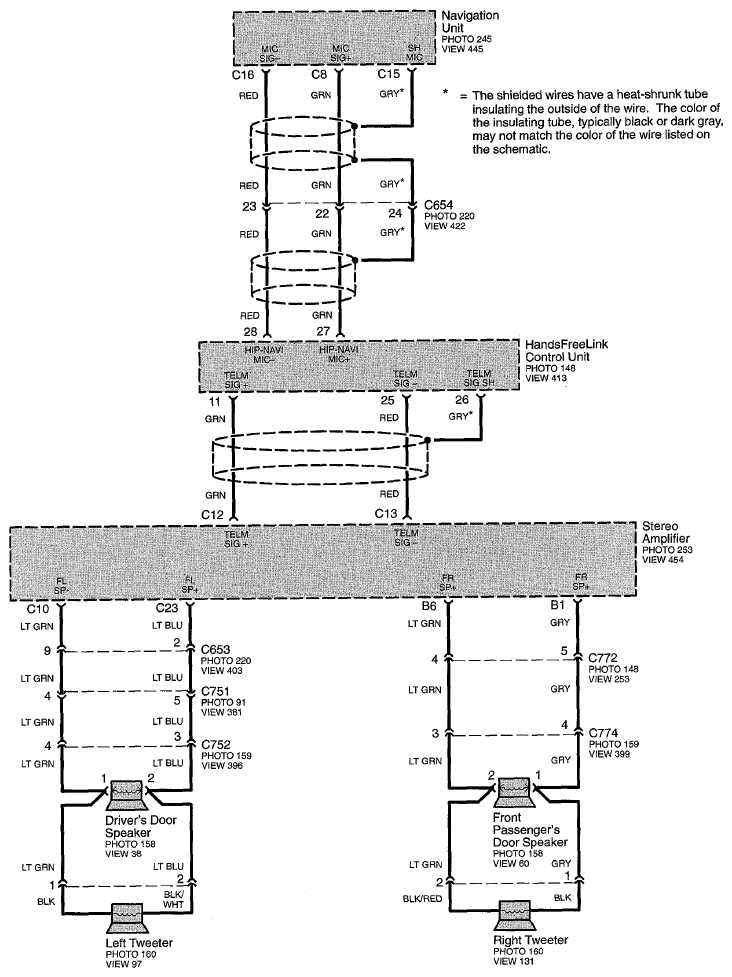

Fig 3: HFL System (HandsFreeLink) Circuit Diagram (Page 152-2)
G07748408

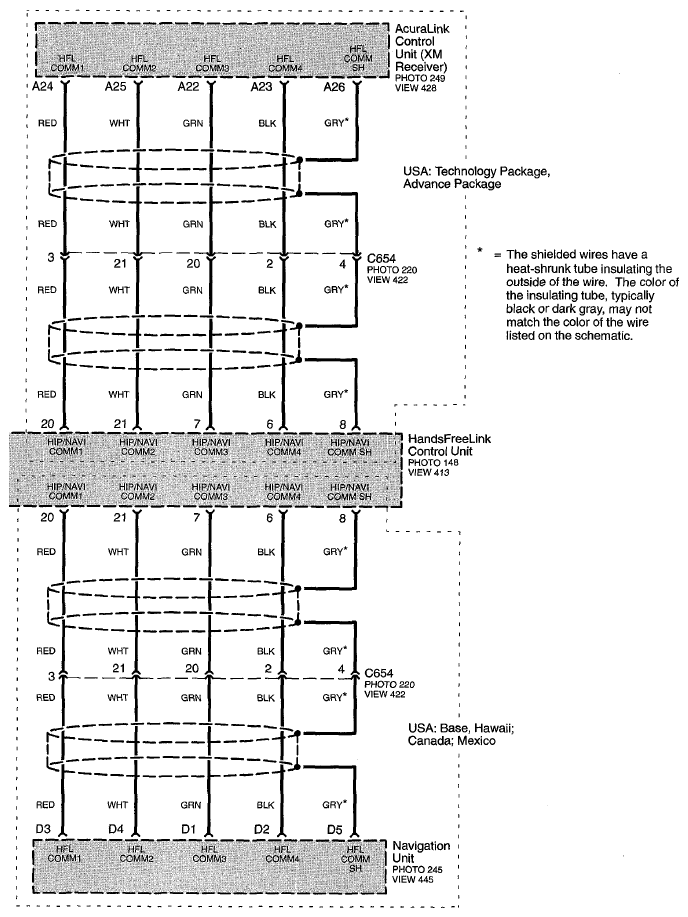

Fig 4: HFL System (HandsFreeLink) Circuit Diagram (Page 152-3)
G07748409
