OEM Circuit Diagrams: Fans: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

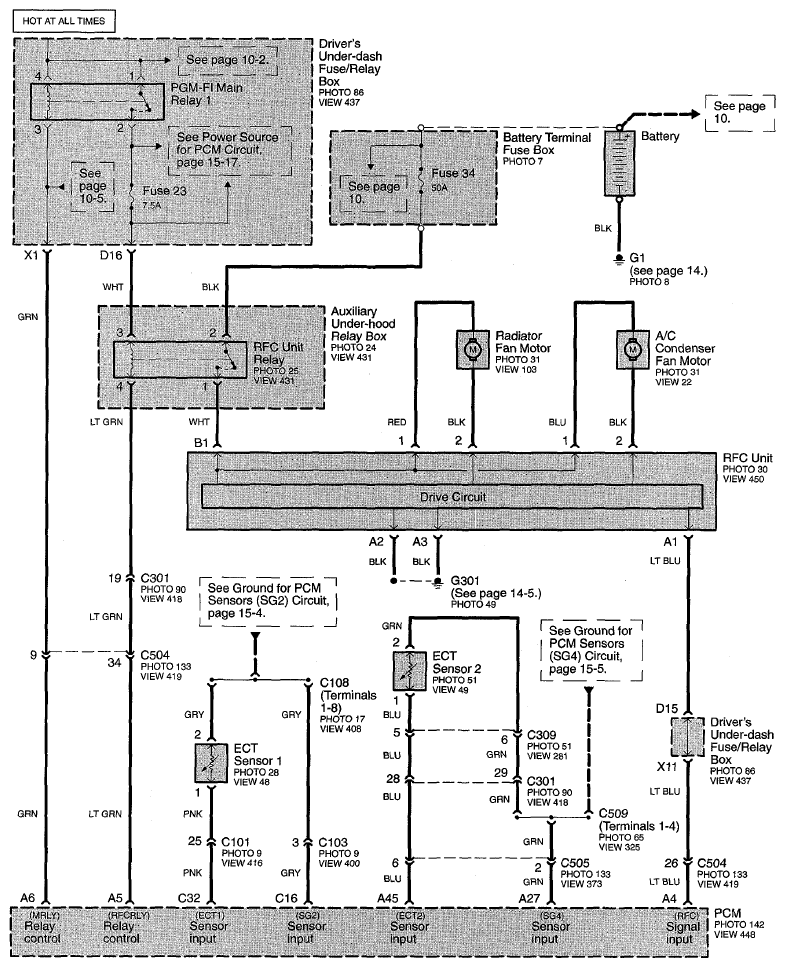

Fig 1: Fans Circuit Diagram (Page 63)
G07748244

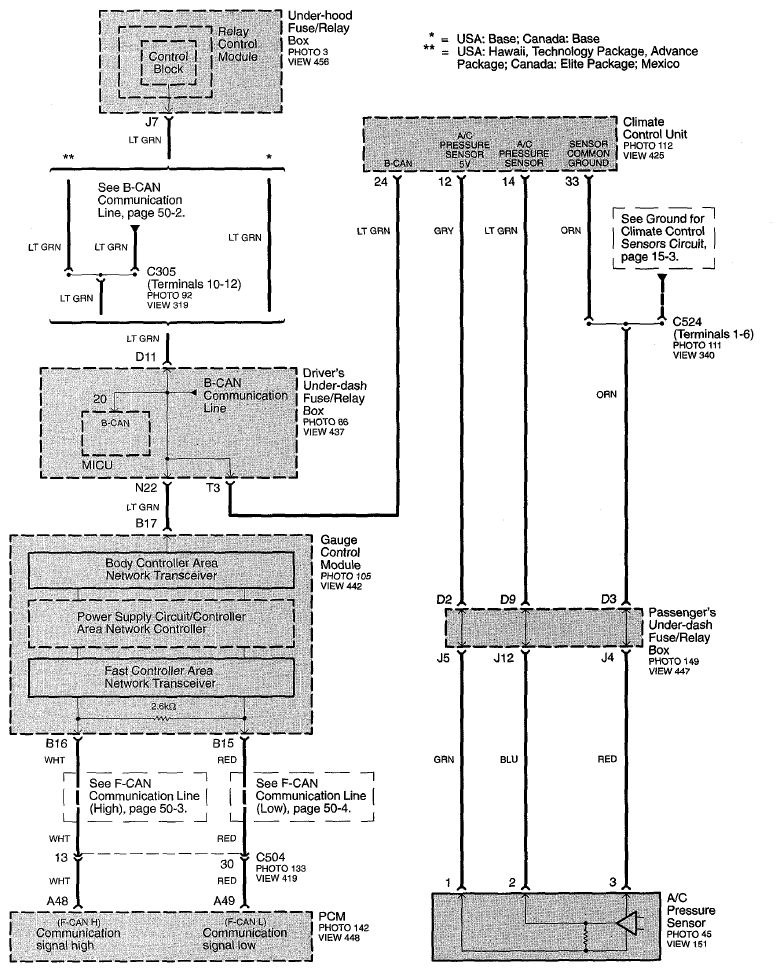

Fig 2: Fans Circuit Diagram (Page 63-1)
G07748245
