Charging System
NOTE:
For connector or component location "PHOTO", see
OEM COMPONENT LOCATION
. For connector "VIEW", see
OEM CONNECTOR END VIEWS
.

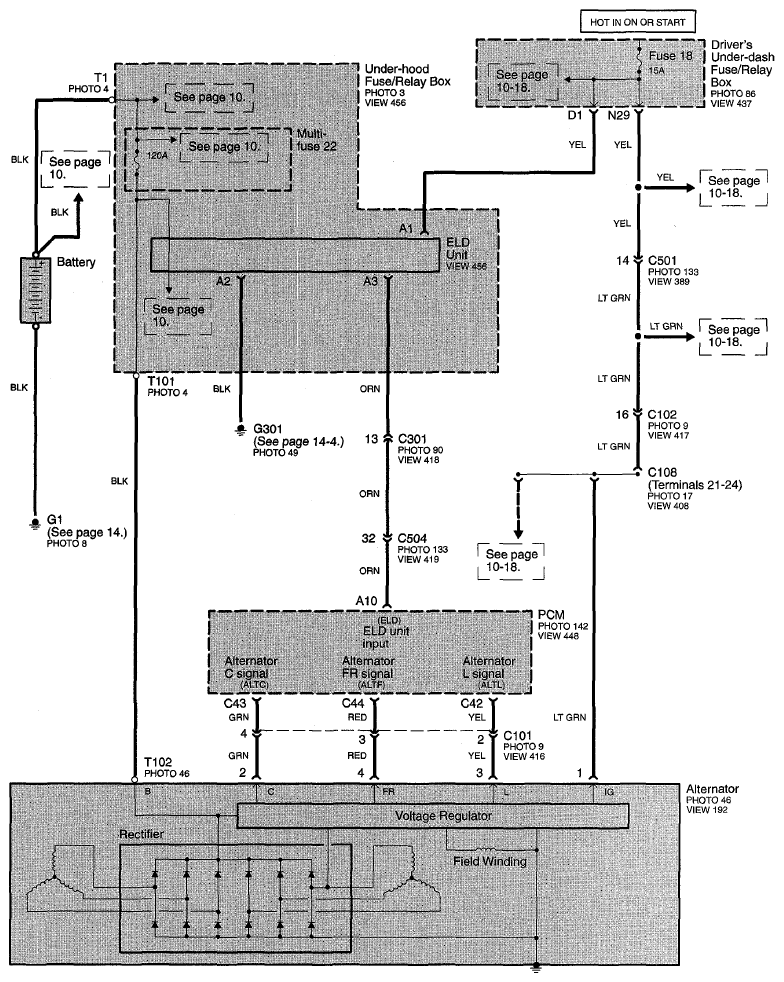

Fig 1: Charging System Circuit Diagram (Page 22)

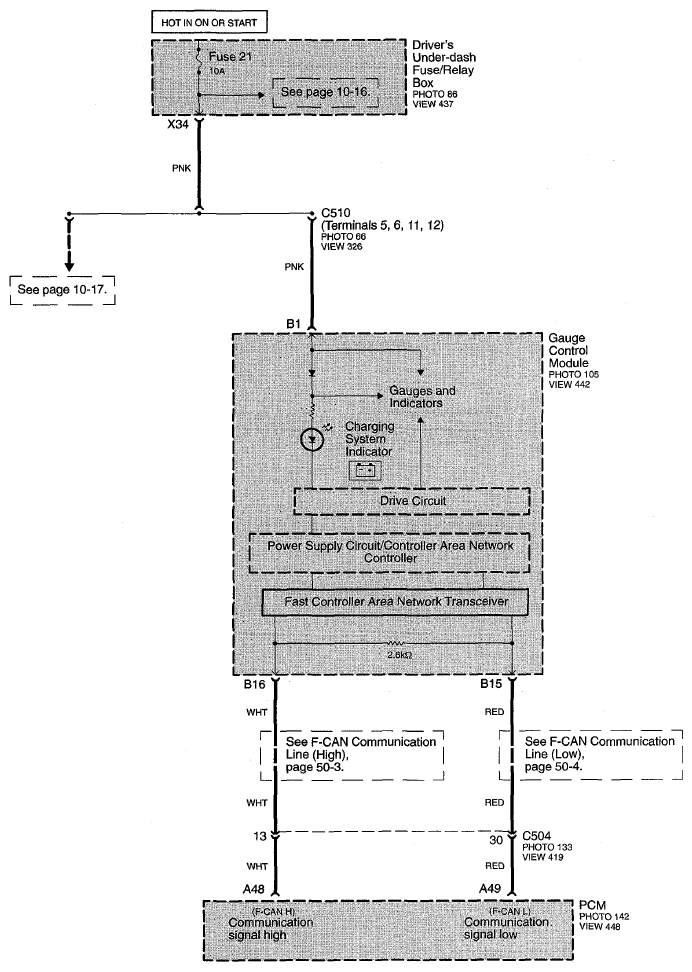

Fig 2: Charging System Circuit Diagram (Page 22-1)
