Component Location Index

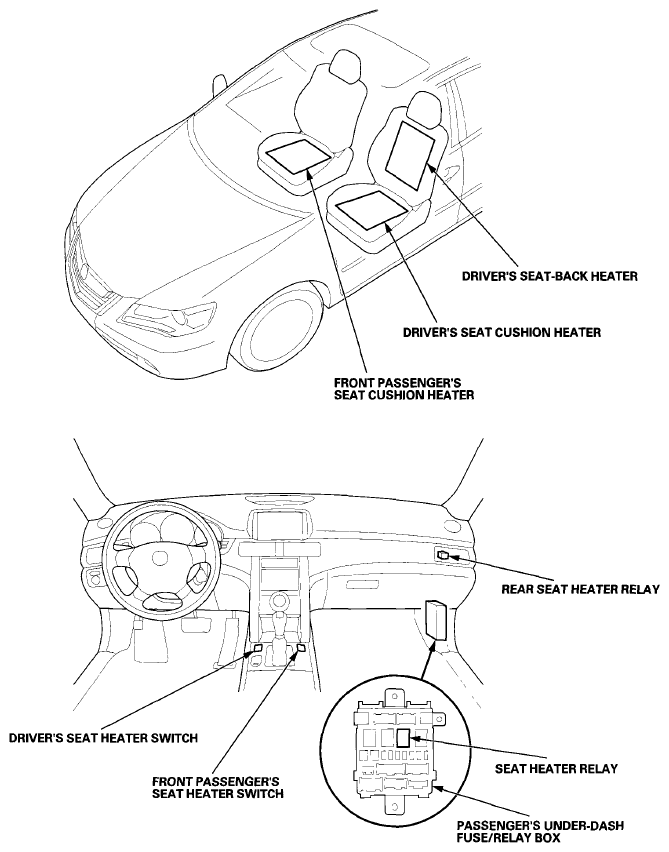

Fig 1: Identifying Seat Heaters Components (1 Of 2)
G07355178Courtesy of AMERICAN HONDA MOTOR CO., INC.

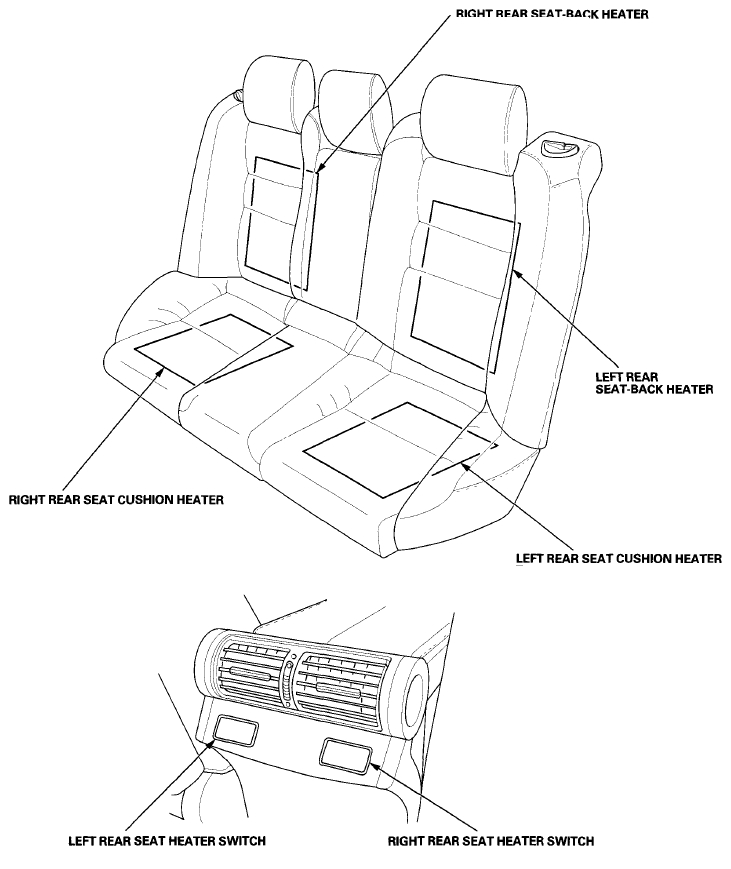

Fig 2: Identifying Seat Heaters Components (2 Of 2)
G07355179Courtesy of AMERICAN HONDA MOTOR CO., INC.
