Rear Subframe Torque

NOTE: Install the rear subframe by aligning the installation positioning hole on the subframe and the positioning hole on the body with a screwdriver or tapered punch as a guide.

After removing the subframe mounting bolts, be sure to replace them with new ones.

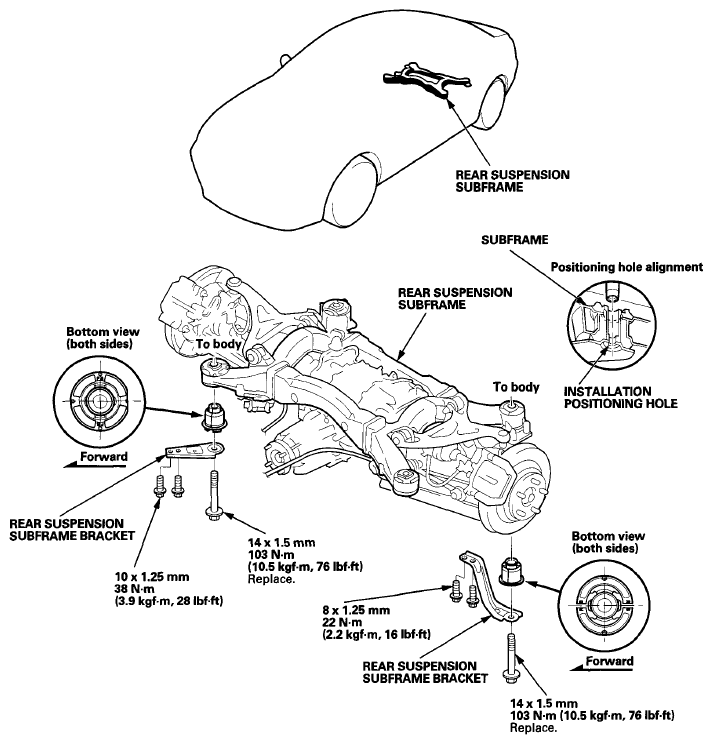

Fig 1: Rear Subframe Dimensions With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
