Interior LF Antenna Test
NOTE:
Before testing, check for DTCs, If any DTCs are indicated, troubleshoot the indicated DTCs first.
- Connect the HDS to the data link connector (DLC).
- Turn the ignition switch to ON (II) with the built-in key.
- Select KEYLESS ACCESS from the SYSTEM SELECT menu with the HDS.
- Select SELF CHECK, and if any malfunction is found, troubleshoot it first

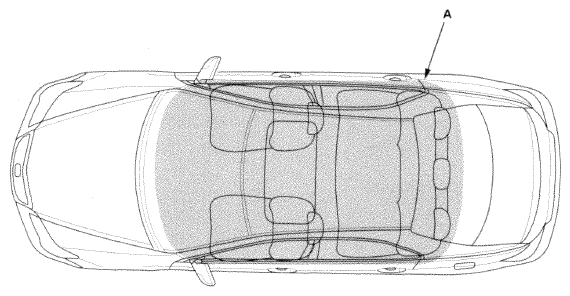

- Select FUNCTION TEST, and do the antenna driving test by checking the transmitting area (A) between the LF antenna and the remote (except on the dashboard, in the glove box, door pockets, console box, and other enclosed areas).FUNCTION TEST DESCRIPTION
LF Antenna Location HDS Indication (Function Test) Front Interior LF antenna Front interior Antenna Driving Rear Interior LF antenna Rear Interior Antenna Driving Trunk interior/Rear shelf LF antenna Trunk interior/Rear shelf LF Antenna Driving NOTE: Function Test cannot operate at the same time, check the LF antennas one at a time.
