Washer Tube Replacement: Windshield

  1. Remove the right inner fender (see FRONT INNER FENDER REPLACEMENT ).
  2. Remove the windshield washer nozzles and clips, then remove the tube.

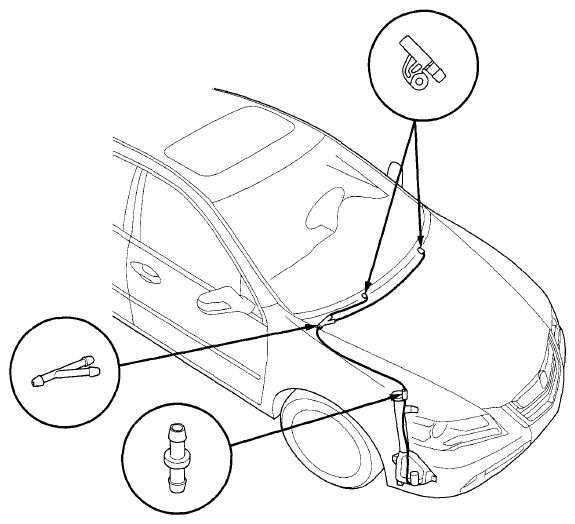

    Fig 1: Removing Windshield Washer Nozzles And Clips
    G07355097Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal. Take care not to pinch the washer tube. Check the windshield washer operation.
