Canada models

  1. Carefully pry the switch panel out from the dashboard.
  2. Disconnect the 5P connector (A) from the headlight washer switch (B).

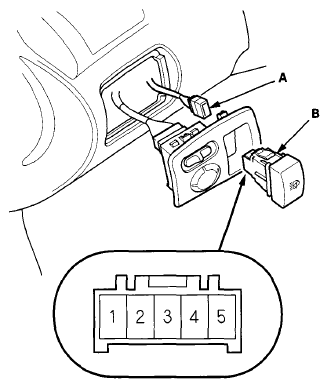

    Fig 1: Disconnecting 5P Connector From Headlight Washer Switch
    G07355078Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Checking Continuity Between Terminals
    G07355079Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the continuity is not as specified, replace the bulb (A) or the headlight washer switch.
    Fig 3: Identifying Bulb
    G07355080Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
