Home
>>
Acura
>>
2012
>>
RL
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control
>>
Circuit Diagram
Circuit Diagram

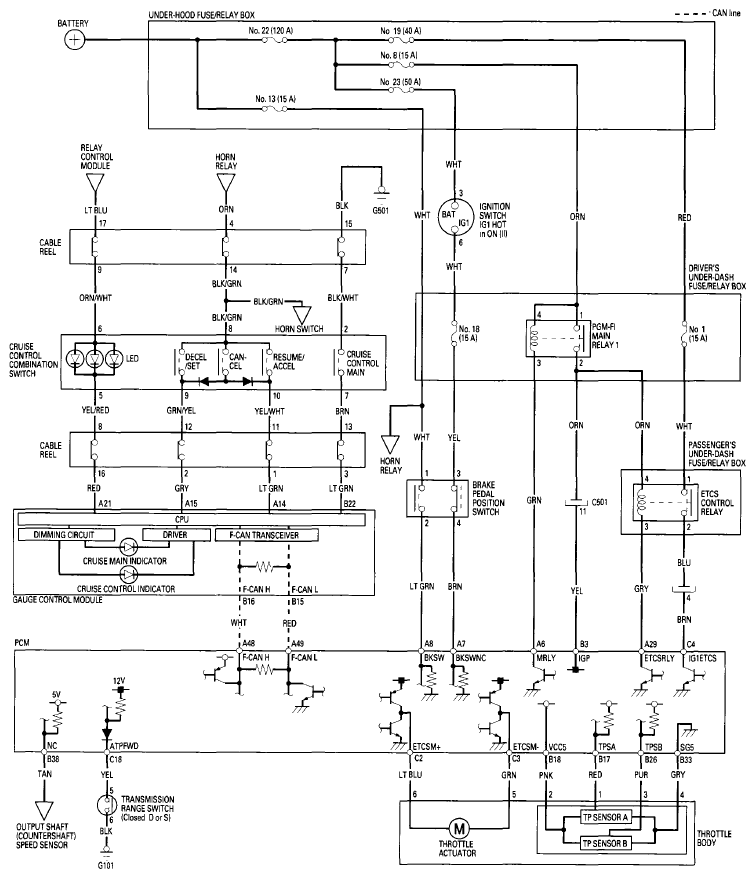

Fig 1: Cruise Control Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
