ECPS Control Unit Removal/Installation

  1. Remove the driver's dashboard undercover, see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION and the driver's dashboard lower cover (see INSTRUMENT FASCIA REMOVAL/INSTALLATION ).
  2. Disconnect the connector (A) from the ECPS control unit, and remove the bolt (B).

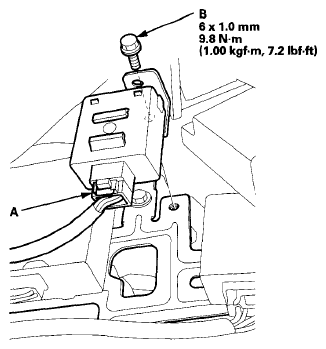

    Fig 1: Disconnecting Connector From ECPS Control Unit With Torque Specifications
    G07354210Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the ECPS control unit in the reverse order of removal.
