USB Adapter Unit Connector A Connector End View (View 457)

Behind left side of glove box
Connector A
- WHT
- On dashboard wire harness (center branch)

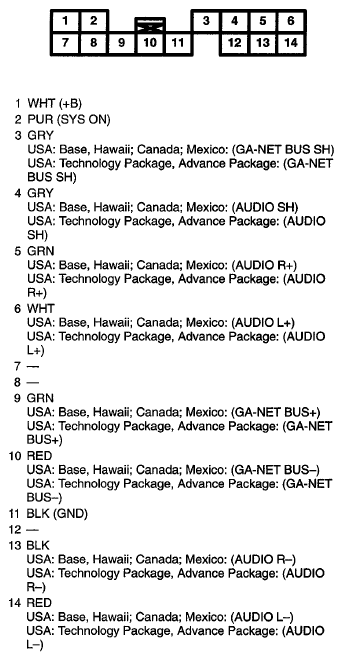

  Fig 1: USB Adapter Unit Connector A Terminals (View 457)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- GRY
- On USB cord assembly

  Fig 2: USB Adapter Unit Connector B Terminals (View 457)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
