SH-AWD Control Unit Connector A Connector End View (View 452)

Behind rear seat
On floor sub-harness
Connector A
- GRY

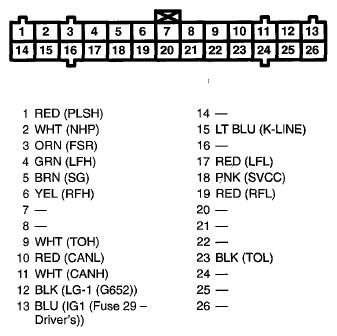

  Fig 1: SH-AWD Control Unit Connector A Terminals (View 452)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- WHT

  Fig 2: SH-AWD Control Unit Connector B Terminals (View 452)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
