Power Tilt/Telescopic Steering Control Unit Connector A Connector End View (View 449)

Under left side of dash
On dashboard wire harness (around the steering column)
Connector A
- GRY

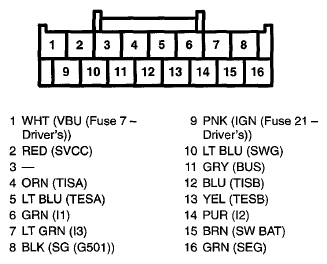

  Fig 1: Power Tilt/Telescopic Steering Control Unit Connector A Terminals (View 449)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- GRY/WHT

  Fig 2: Power Tilt/Telescopic Steering Control Unit Connector B Terminals (View 449)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
