Navigation Unit Connector A Connector End View (View 445)

GRY
Left side of rear shelf

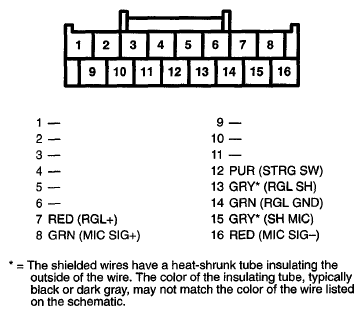

Connector A
- On left side wire harness (rear branch)

  Fig 1: Navigation Unit Connector A Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

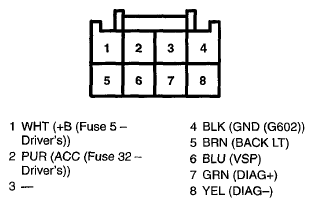

Connector B
- On left side wire harness (rear branch)

  Fig 2: Navigation Unit Connector B Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

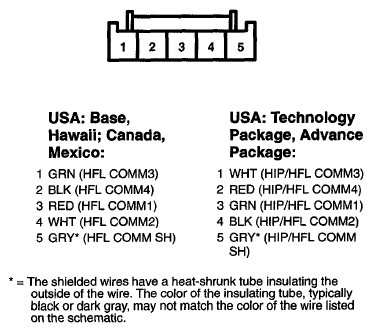

Connector C
- On left side wire harness (rear branch)

  Fig 3: Navigation Unit Connector C Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

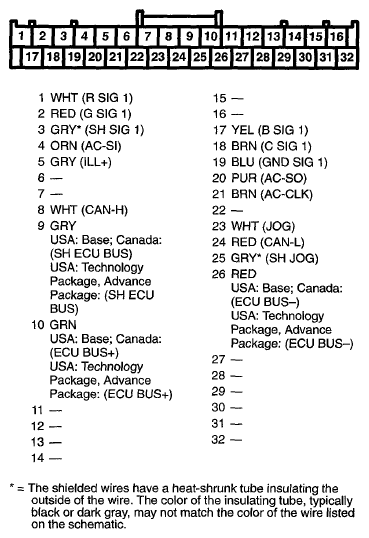

Connector D
- On left side wire harness (rear branch)

  Fig 4: Navigation Unit Connector D Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Connector E (USA: Hawaii, Technology Package, Advance Package; Canada; Mexico)
- On left side wire harness (rear branch)

  Fig 5: Navigation Unit Connector E Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

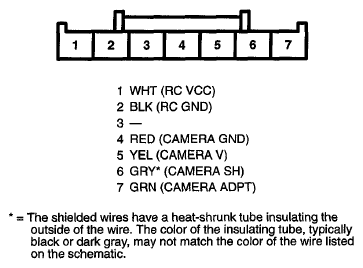

Connector F
- To GPS antenna

  Fig 6: Navigation Unit Connector F Terminals (View 445)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
