Keyless Access Control Unit Connector A Connector End View (View 443)

Under left side of dash
Connector A
- BLK
- On dashboard wire harness (left branch)

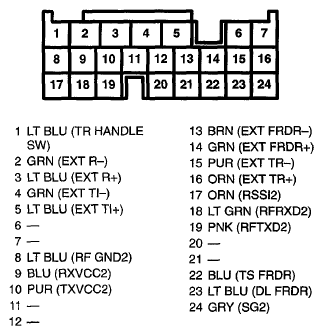

  Fig 1: Keyless Access Control Unit Connector A Terminals (View 443)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- WHT
- On left side wire harness (front branch)

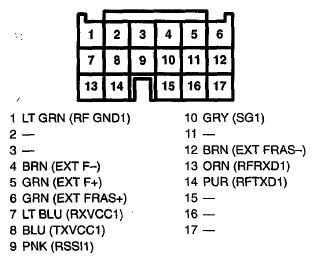

  Fig 2: Keyless Access Control Unit Connector B Terminals (View 443)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- WHT
- On dashboard wire harness (left branch)

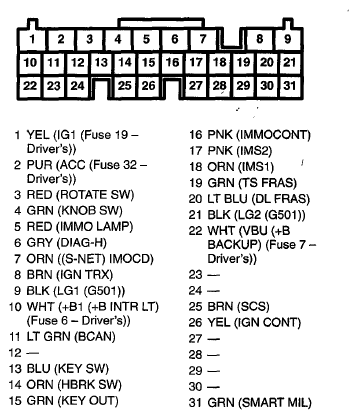

  Fig 3: Keyless Access Control Unit Connector C Terminals (View 443)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
