Front Passenger's MPCS Unit Connector A Connector End View (View 440)
Front Passenger's MPCS Unit Connector A Connector End View (View 440)
GRY
Front passenger's door
On front passenger's door wire harness A
Connector A

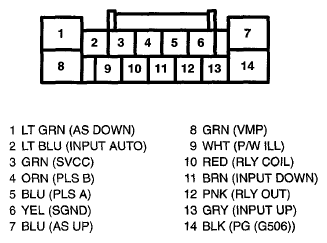

Fig 1: Front Passenger's MPCS Unit Connector A Terminals (View 440)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B

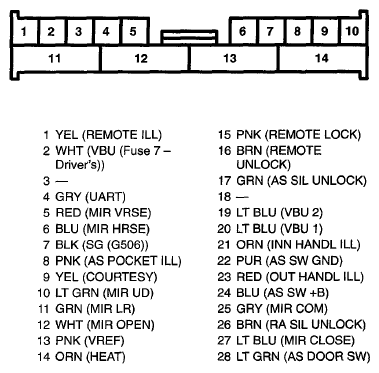

Fig 2: Front Passenger's MPCS Unit Connector B Terminals (View 440)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
