FTP Sensor Connector End View (View 164)
FTP Sensor Connector End View (View 164)
BLK
Above rear differential
On floor sub-harness

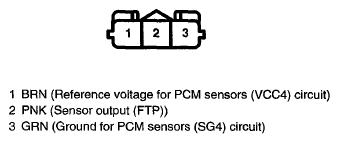

Fig 1: FTP Sensor Connector Terminals (View 164)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
