Driver's MPCS Unit Connector A Connector End View (View 434)

GRY
Driver's door
On driver's door wire harness A
Connector A

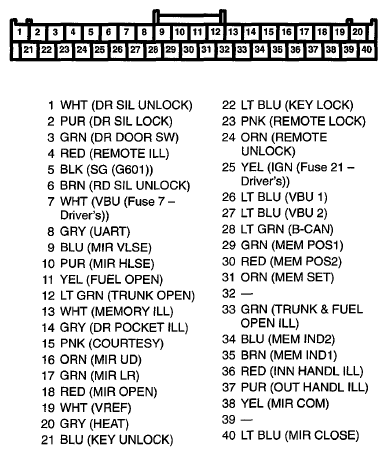

Fig 1: Driver's MPCS Unit Connector A Terminals (View 434)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B

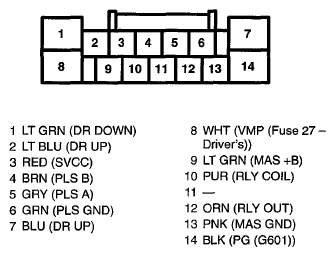

Fig 2: Driver's MPCS Unit Connector B Terminals (View 434)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
