Adaptive Front Lighting Control Unit Connector End View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico) (View 424)

GRY
Under left side of dash
On engine compartment wire harness (dash branch)

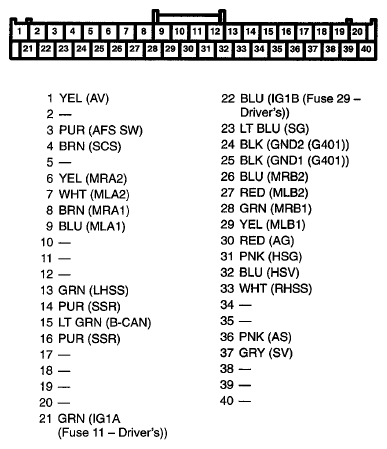

Fig 1: Adaptive Front Lighting Control Unit (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico) Connector Terminals (View 424)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
